STR-Z2587, STR-Z2500, STR-Z2500 Series Power-IC

Series Power IC for Current Resonant Type Switching Power Supply with Half-Bridge Resonance, High Efficiency and Low Noise The STR-Z2500 series products are power ICs for current resonant type switching power supplies, incorporating a controller IC including high-side and low-side MOSFETs of half.

STR-Z2500-Sanken.pdf

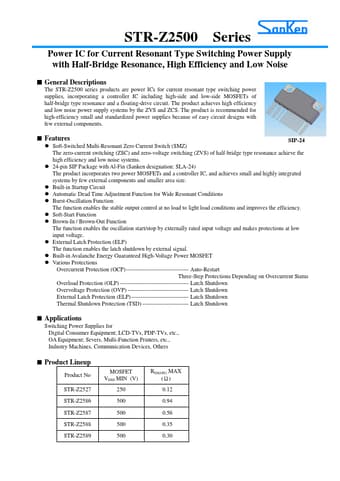

STR-Z2587 Datasheet Preview — This datasheet PDF includes multiple part numbers: STR-Z2587, STR-Z2500. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STR-Z2587, STR-Z2500

Manufacturer:

Sanken ↗

File Size:

129.86 KB

Description:

STR-Z2500 Series Power-IC

Note:

This datasheet PDF includes multiple part numbers: STR-Z2587, STR-Z2500.
Please refer to the document for exact specifications by model.

STR-Z2587 Features

* SIP-24 Soft-Switched Multi-Resonant Zero Current Switch (SMZ) The zero-current switching (ZSC) and zero-voltage switching (ZVS) of half-bridge type resonance achieve the high efficiency and low noise systems. 24-pin SIP Package with Al-Fin (Sanken designation: SLA-24) The product incorporates two p
