A1537 PNP/NPN Epitaxial Planar Silicon Transistors

A1537 Description

Ordering number:ENN2436C PNP/NPN Epitaxial Planar Silicon Transistors 2SA1537/2SC3952 High-Definition CRT Display Video Output Applications Applicat.

A1537 Features

* High fT : fT=700MHz.
* High breakdown voltage : VCEO=70Vmin.
* Small reverse transfer capacitance and excellent high-frequency characteristic : Cre=3.1pF/NPN, 4.8pF/PNP.
* Complementary PNP and NPN types.
* Adoption of FBET process.
* Micaless type. [2SA1537/2SC3952] 8.0

A1537 Applications

* Applications

📥 Download Datasheet

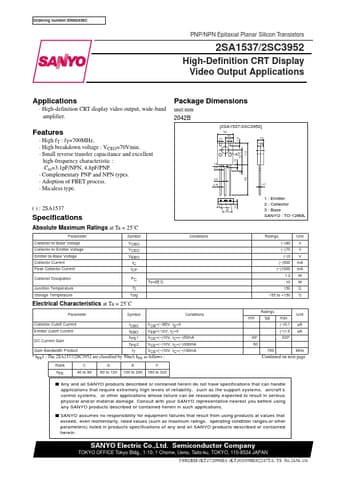

Preview of A1537 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1537
Manufacturer
Sanyo
File Size
38.89 KB
Datasheet
A1537-Sanyo.pdf
Description
PNP/NPN Epitaxial Planar Silicon Transistors
