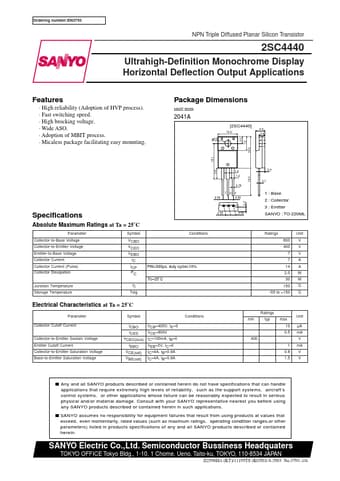

C4440
C4440 is 2SC4440 manufactured by SANYO.
Features
- High reliability (Adoption of HVP process).
- Fast switching speed.
- High brocking voltage.
- Wide ASO.
- Adoption of MBIT process.
- Micaless package facilitating easy mounting.
Package Dimensions unit:mm 2041A
[2SC4440]
10.0 3.2
4.5 2.8
3.5 7.2 16.0
18.1 5.6
1.6 1.2
0.75 123 2.55 2.55
Specifications
Absolute Maximum Ratings at Ta = 25˚C
Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation
Symbol
VCBO VCEO VEBO
IC ICP PC
Junction Temperature Storage Temperature
Tj Tstg
Conditions
PW≤300µs, duty cycle≤10% Tc=25˚C
2.4 14.0
1 : Base 2 : Collector 3 : Emitter SANYO : TO-220ML
Ratings 600 400 7 7 14 2.0 30 150
- 55 to +150
Unit V V V A A W W ˚C ˚C
Electrical Characteristics at Ta = 25˚C
Parameter
Collector Cutoff Current
Collector-to-Emitter Sastain Voltage Emitter Cutoff Current Collector-to-Emitter Saturation Voltage Base-to-Emitter Saturation Voltage
Symbol
Conditions...
