LA4613 Datasheet - Sanyo

LA4613 Audio Power Amplifier

1. Standby switching function (9) Power is switched ON and OFF by controlling the High and Low states at pin 9, respectively (standby). To switch power ON, apply 1.5V or more, or 800 µA to pin 9. . Applied voltage Applied voltage * VBE (approx. 0.7V) + Current supplied to pin 9 = . 2 kΩ 2 k.

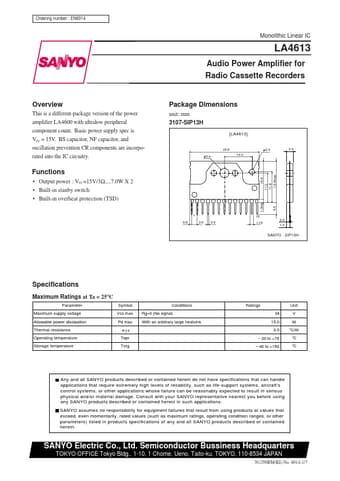

Ordering number : EN6014 LA4613 Monolithic Linear IC LA4613 Audio Power Amplifier for Radio Cassette Recorders Overview This is a different-package version of the power amplifier LA4600 with ultralow peripheral component count. Basic power supply spec is VCC = 15V. BS capacitor, NF capacitor, and oscillation prevention CR components are incorporated into the IC circuitry. Package Dimensions unit: mm 3107-SIP13H [LA4613] 25.6 3.4 10.0 2.0 2.4 Output power : VCC =15V/3Ω7.0W X 2 <.

LA4613 Features

* Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification" for the SANYO product that you intend to use
