LV4924VH - Class-D Audio Power Amplifier

Description

Continued on next page.

Continued from preceding page.

Pin No.

Features

  • BTL output, class D amplifier system.
  • High-efficiency class D amplifier.
  • Muting function reduces impulse noise at power on / off.
  • Protection circuits incorporated for over-current, thermal, supply voltage drop, output offset detector.
  • Built-in bootstrap diodes.
  • Output 15W (VD=16V, RL=8Ω, fIN=1kHz, AES17, THD+N=10%) Output 10W (VD=13V, RL=8Ω, fIN=1kHz, AES17, THD+N=10%) Efficiency : 89% (VD=13V, RL=8Ω, fIN=1kHz,.

📥 Download Datasheet

📁 Similar Datasheet

  • LV4924VH - Class-D Audio power Amplifier (ON Semiconductor)
  • LV4904V - Digital Input Class-D Power Amplifier (ON Semiconductor)
  • LV4910T - Class-D Audio Power Amplifier (ON Semiconductor)
  • LV49152V - Class-D Audio Power Amplifier (ON Semiconductor)
  • LV49157V - Class-D Audio Power Amplifier (ON Semiconductor)
  • LV40100BCT - Schottky Barrier Diode (BLUE ROCKET ELECTRONICS)
  • LV40100CT - Schottky Barrier Diode (BLUE ROCKET ELECTRONICS)
  • LV40100FCT - Schottky Barrier Diode (BLUE ROCKET ELECTRONICS)
  • LV40100PT - Schottky Barrier Diode (BLUE ROCKET ELECTRONICS)
  • LV40150CT - Schottky Barrier Diode (BLUE ROCKET ELECTRONICS)
Other Datasheets by Sanyo Semicon Device
  • LV4920H - Class-D Audio Power Amplifier
  • LV4900H - Class-D Audio Power Amplifier
  • LV4900HR - Class-D Audio Power Amplifier
  • LV4901H - Class-D Audio Power Amplifier
  • LV4904V - Class-D Audio Power Amplifier
  • LV4910T - Class-D Audio Power Amplifier
  • LV4912GP - Class-D Audio Power Amplifier
  • LV49152V - Class-D Audio Power Amplifier

Full PDF Text Transcription

Click to expand full text

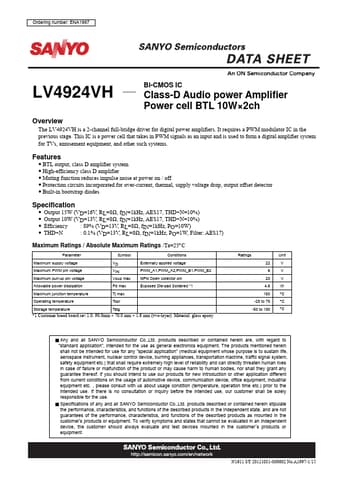

www.DataSheet.co.kr Ordering number: ENA1997 LV4924VH Overview Bi-CMOS IC Class-D Audio power Amplifier Power cell BTL 10W×2ch The LV4924VH is a 2-channel full-bridge driver for digital power amplifiers. It requires a PWM modulator IC in the previous stage. This IC is a power cell that takes in PWM signals as an input and is used to form a digital amplifier system for TVs, amusement equipment, and other such systems.
