SavantIC

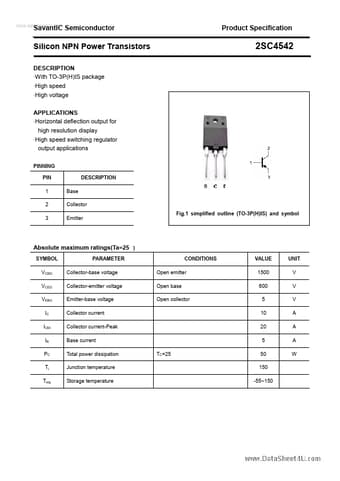

2SC4542 Datasheet Preview

2SC4542 Datasheet

SILICON POWER TRANSISTOR

No Preview Available !

www.datSasaheveat4nu.tcIoCm Semiconductor
Silicon NPN Power Transistors
DESCRIPTION
·With TO-3P(H)IS package
·High speed
·High voltage
APPLICATIONS
·Horizontal deflection output for
high resolution display
·High speed switching regulator
output applications
PINNING
PIN
1
2
3
DESCRIPTION
Base
Collector
Emitter
Product Specification
2SC4542
Fig.1 simplified outline (TO-3P(H)IS) and symbol
Absolute maximum ratings(Ta=25 )
SYMBOL
PARAMETER
VCBO
VCEO
VEBO
IC
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
ICM Collector current-Peak
IB Base current
PC Total power dissipation
Tj Junction temperature
Tstg Storage temperature
CONDITIONS
Open emitter
Open base
Open collector
TC=25
VALUE
1500
600
5
10
20
5
50
150
-55~150
UNIT
V
V
V
A
A
A
W




SavantIC

2SC4542 Datasheet Preview

2SC4542 Datasheet

SILICON POWER TRANSISTOR

No Preview Available !

www.datSasaheveat4nu.tcIoCm Semiconductor
Silicon NPN Power Transistors
Product Specification
2SC4542
CHARACTERISTICS
Tj=25 unless otherwise specified
SYMBOL
PARAMETER
CONDITIONS
V(BR)CEO Collector-emitter breakdown voltage IC=5mA ;IB=0
VCEsat Collector-emitter saturation voltage IC=7A; IB=1.7A
VBEsat
Base-emitter saturation voltage
IC=7A; IB=1.7A
ICBO Collector cut-off current
IEBO Emitter cut-off current
hFE DC current gain
Cob Collector output capacitance
VCB=1500V; IE=0
VEB=5V; IC=0
IC=1A ; VCE=5V
IE=0 ; VCB=10V,f=1MHz
fT Transition frequency
IE=0.1A ; VCE=10V
Switching times resistive load
ts Storage time
tf Fall time
ICP=7A;IB1=1.4A
IB2=-2.8A; RL=28.5A
MIN TYP. MAX UNIT
600 V
5V
1.5 V
1.0 mA
10 µA
8 15
210 pF
13
MHz
1.8 2.5 µs
0.1 0.2 µs
2
