C3179 Datasheet | SavantIC

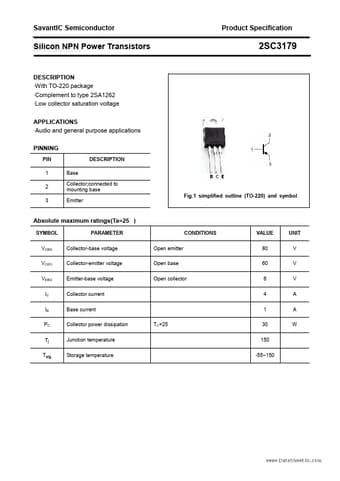

DESCRIPTION - With TO-220 package - plement to type 2SA1262 - Low collector saturation voltage APPLICATIONS - Audio and general purpose applications PINNING DESCRIPTION 1 Base Collector;connected to mounting base 3 Emitter Fig.1 simplified outline (TO-220) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER VCBO Collector-base voltage VCEO VEBO IC IB Collector-emitter voltage Emitter-base voltage Collector current Base current PC Collector power dissipation Tj Junction temperature Tstg Storage temperature CONDITIONS Open emitter Open base Open collector TC=25 VALUE 80 60 6 4 1 30 150 -55~150 UNIT V V V A A W Savant IC Semiconductor Silicon NPN Power Transistors .. CHARACTERISTICS Tj=25 unless otherwise specified SYMBOL PARAMETER CONDITIONS V(BR)CEO Collector-emitter breakdown voltage IC=25m A ,IB=0 VCE(sat) Collector-emitter saturation voltage IC=2A; IB=0.2 A ICBO Collector cut-off...
