2SD5076

No Preview Available !

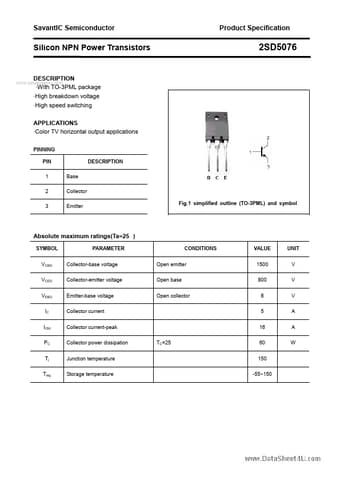

SavantIC Semiconductor
Silicon NPN Power Transistors
Product Specification
2SD5076
DESCRIPTION
www.data·sWheietht4uT.cOom-3PML package
·High breakdown voltage
·High speed switching
APPLICATIONS
·Color TV horizontal output applications
PINNING
PIN
1
2
3
DESCRIPTION
Base
Collector
Emitter
Fig.1 simplified outline (TO-3PML) and symbol
Absolute maximum ratings(Ta=25 )
SYMBOL
PARAMETER
VCBO
Collector-base voltage
VCEO
VEBO
Collector-emitter voltage
Emitter-base voltage
IC Collector current
ICM Collector current-peak
PC Collector power dissipation
Tj Junction temperature
Tstg Storage temperature
CONDITIONS
Open emitter
Open base
Open collector
TC=25
VALUE
1500
800
6
5
16
60
150
-55~150
UNIT
V
V
V
A
A
W




Savantic

D5076 Datasheet Preview

D5076 Datasheet

2SD5076

No Preview Available !

SavantIC Semiconductor
Silicon NPN Power Transistors
Product Specification
2SD5076
CHARACTERISTICS
Tj=25 unless otherwise specified
www.datasheet4u.com
SYMBOL
PARAMETER
CONDITIONS
VCEsat Collector-emitter saturation voltage IC=4A;IB=0.8A
VBEsat
Base-emitter saturation voltage
IC=4A;IB=0.8A
IEBO Emitter cut-off current
VEB=5V; IC=0
ICBO Collector cut-off current
VCB=800V; IE=0
hFE DC current gain
fT Transition frequency
tf Fall time
IC=1 A ; VCE=5V
IC=1 A ; VCE=10V
IC=4A;IB1=0.8A;IB2=-1.6A
VCC=200V;RL=50=
MIN TYP. MAX UNIT
5.0 V
1.5 V
1.0 mA
10 µA
8
3 MHz
0.4 µs
2
