40N03 N-Channel Enhancement Mode PowerMos FET

40N03 Description

SID40N03 Elektronische Bauelemente 36A, 30V,RDS(ON)21m N-Channel Enhancement Mode Power Mos.FET RoHS Compliant Product .
The SID40N03 provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

40N03 Features

* Repetitive Avalanche Rated
* Dynamic dv/dt Rating
* Simple Drive Requirement
* Fast Switching TO-251 6.6±0.2 5.3±0.2 2.3±0.1 0.5±0.05 5.6±0.2 7.0±0.2 7.0±0.2 1.2±0.3 0.75±0.15 0.6±0.1 G 2.3REF. DS 0.5±0.1 Dimensions in millimeters D Absolute Maximum Ratings Parameter Dra

📥 Download Datasheet

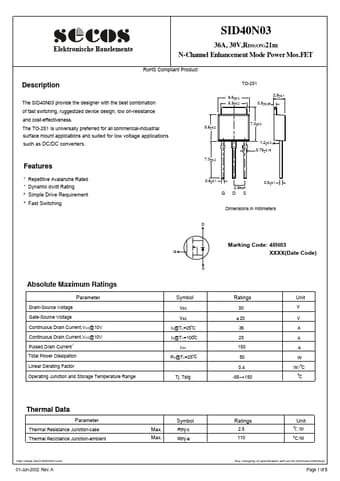

Preview of 40N03 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
40N03
Manufacturer
SeCoS
File Size
640.81 KB
Datasheet
40N03-SeCoS.pdf
Description
N-Channel Enhancement Mode PowerMos FET
