HER102 - High Efficiency Rectifiers

This page provides the datasheet information for the HER102, a member of the HER101 High Efficiency Rectifiers family.

Features

  • z Low forward voltage drop z High current capability z High reliability z High surge current capability z High speed switching RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free.

📥 Download Datasheet

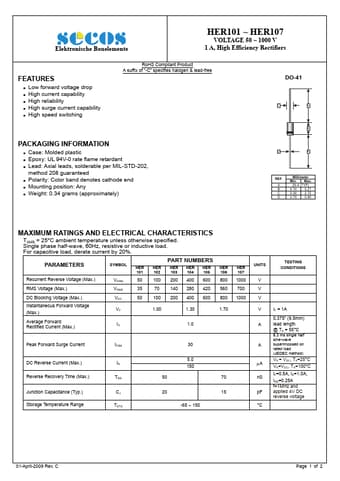

Datasheet preview – HER102

Datasheet Details

Part number HER102
Manufacturer SeCoS
File Size 136.07 KB
Description High Efficiency Rectifiers
Datasheet download datasheet HER102 Datasheet
Additional preview pages of the HER102 datasheet.

📁 Similar Datasheet

  • HER102 - 1.0A HIGH EFFICIENCY RECTIFIER (Diodes Incorporated)
  • HER102 - 1.0 Amp High Efficient Rectifiers 50 to 1000 Volts (Micro Commercial Components)
  • HER102 - HIGH EFFICIENCY RECTIFIERS(1.0A/50-400V) (Mospec Semiconductor)
  • HER102 - HIGH EFFICIENCY RECTIFIER (GOOD-ARK Electronics)
  • HER102 - 1.0 AMP HIGH EFFICIENCY RECTIFIERS (Formosa MS)
  • HER102 - HIGH EFFICIENCY RECTIFIER (VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere) (Rectron Semiconductor)
  • HER102 - TECHNICAL SPECIFICATIONS OF HIGH EFFICIENCY RECTIFIER (Dc Components)
  • HER102 - HIGH EFFICIENT RECTIFIER DIODES (EIC discrete Semiconductors)
  • HER102 - HIGH EFFICIENCY RECOVERY RECTIFIERS (Kingtronics)
  • HER102 - HIGH EFFICIENCY RECTIFIER (RFE)
Other Datasheets by SeCoS
  • HER102G - Glass Passivated High Efficiency Rectifiers
  • HER101 - High Efficiency Rectifiers
  • HER101G - Glass Passivated High Efficiency Rectifiers
  • HER103 - High Efficiency Rectifiers
  • HER103G - Glass Passivated High Efficiency Rectifiers
  • HER104 - High Efficiency Rectifiers
  • HER104G - Glass Passivated High Efficiency Rectifiers
  • HER105 - High Efficiency Rectifiers

Full PDF Text Transcription

Click to expand full text
Elektronische Bauelemente HER101 ~ HER107 VOLTAGE 50 ~ 1000 V 1 A, High Efficiency Rectifiers FEATURES z Low forward voltage drop z High current capability z High reliability z High surge current capability z High speed switching RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free PACKAGING INFORMATION z Case: Molded plastic z Epoxy: UL 94V-0 rate flame retardant z Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed z Polarity: Color band denotes cathode end z Mounting position: Any z Weight: 0.34 grams (approximately) DO-41 CA B DA REF. A B C D Millimeter Min. Max. 25.4 (TYP) 4.10 5.21 2.00 2.72 0.70 0.90 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS TAMB = 25°C ambient temperature unless otherwise specified.
