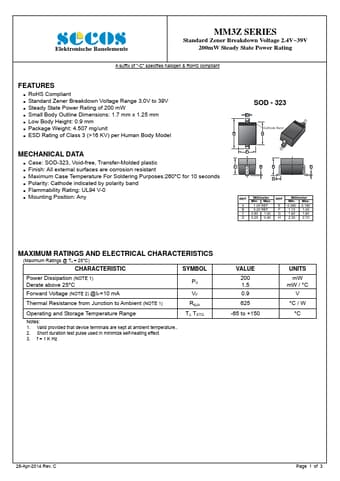

MM3Z16V Overview
Elektronische Bauelemente MM3Z SERIES Standard Zener Breakdown Voltage 2.4V~39V 200mW Steady State Power Rating A suffix of "-C" specifies halogen & RoHS pliant.
MM3Z16V Key Features
- RoHS pliant
- Standard Zener Breakdown Voltage Range 3.0V to 39V
- Steady State Power Rating of 200 mW
- Small Body Outline Dimensions: 1.7 mm x 1.25 mm
- Low Body Height: 0.9 mm
- Package Weight: 4.507 mg/unit
- ESD Rating of Class 3 (>16 KV) per Human Body Model
- Case: SOD-323, Void-free, Transfer-Molded plastic
- Finish: All external surfaces are corrosion resistant
- Maximum Case Temperature For Soldering Purposes:260°C for 10 seconds
