SMG3407 - P-Channel Enhancement Mode MOSFET

Description

The SMG3407 provide the designer with best combination of fast switching, low on-resistance and cost-effectiveness.

The SMG3407 is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters.

Features

  • Simple Drive Requirement Small Package Outline Surface Mount Device.

📥 Download Datasheet

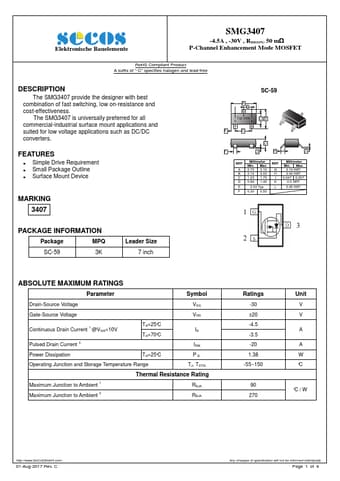

Datasheet preview – SMG3407

Datasheet Details

Part number SMG3407
Manufacturer SeCoS
File Size 532.22 KB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet SMG3407 Datasheet
Additional preview pages of the SMG3407 datasheet.

📁 Similar Datasheet

  • SMG3402 - N-Channel MOSFET (SeCoS Halbleitertechnologie)
  • SMG30 - Voltage-Controlled Attenuator Module (MACOM)
  • SMG3D60C - THYRISTOR (SanRex Corporation)
  • SMG3D60D - THYRISTOR (SanRex Corporation)
  • SMG04C60 - THYRISTOR (SanRex Corporation)
  • SMG05C60 - THYRISTOR (SanRex Corporation)
  • SMG05C60A - THYRISTOR (SanRex Corporation)
  • SMG05CB60 - THYRISTOR (SanRex Corporation)
  • SMG065N40E1 - IGBT (Silikron)
  • SMG065N54E1 - IGBT (Silikron)
Other Datasheets by SeCoS

Full PDF Text Transcription

Click to expand full text
Elektronische Bauelemente SMG3407 -4.5A , -30V , RDS(ON) 50 mΩ P-Channel Enhancement Mode MOSFET RoHS Compliant Product A suffix of “-C” specifies halogen and lead-free DESCRIPTION The SMG3407 provide the designer with best combination of fast switching, low on-resistance and cost-effectiveness. The SMG3407 is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. FEATURES Simple Drive Requirement Small Package Outline Surface Mount Device MARKING 3407 PACKAGE INFORMATION Package MPQ SC-59 3K Leader Size 7 inch SC-59 A L 3 Top View CB 1 2 K E 3 1 2 D F G H J REF. A B C D E F Millimeter Min. Max. 2.70 3.10 2.10 3.00 1.20 1.70 0.89 1.40 2.00 Typ. 0.30 0.50 REF.
