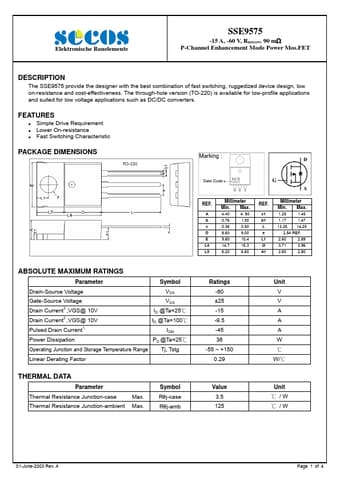

SSE9575
DESCRIPTION
The SSE9575 provide the designer with the best bination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The through-hole version (TO-220) is available for low-profile applications and suited for low voltage applications such as DC/DC converters.
FEATURES z z z
Simple Drive Requirement Lower On-resistance Fast Switching Characteristic
PACKAGE DIMENSIONS
REF.
A b c D E L4
.Data Sheet.co.kr
Millimeter Min. Max.
4.40 0.76 0.36 8.60 9.80 14.7 6.20 4. 80 1.00 0.50 9.00 10.4 15.3 6.60
REF. c1 b1 L e L1 Ø A1
Millimeter Min. Max.
1.25 1.17 13.25 2.60 3.71 2.60 1.45 1.47 14.25 2.89 3.96 2.80
2.54 REF.
L5
ABSOLUTE MAXIMUM RATINGS
Parameter Drain-Source Voltage Gate-Source Voltage Drain Current ,VGS@ 10V Drain Current ,VGS@ 10V Pulsed Drain Current Power Dissipation
Operating Junction and Storage Temperature Range
1, 3 3
Symbol VDS VGS ID @Ta=25℃ ID @Ta=100℃ IDM PD @Ta=25℃ Tj, Tstg
Ratings -60 ±25 -15 -9.5 -45 36 -55 ~ +150 0.29
Unit...
