SC622A - LED Light Management Unit Charge Pump

Description

The SC622A is a high efficiency charge pump LED driver using Semtech’s proprietary mAhXLifeTM technology.

Performance is optimized for use in single-cell Li-ion battery applications.

The charge pump provides continuous or bursted current to a flash LED using a dedicated flash driver current sink.

Features

  • Charge Pump, 400mA Flash LED, Dual LDOs, and I2C Interface.

📥 Download Datasheet

Datasheet preview – SC622A

Datasheet Details

Part number SC622A
Manufacturer Semtech Corporation
File Size 362.50 KB
Description LED Light Management Unit Charge Pump
Datasheet download datasheet SC622A Datasheet
Additional preview pages of the SC622A datasheet.

📁 Similar Datasheet

  • SC6206 - CMOS buck voltage regulator (ChipSourceTek)
  • SC6219 - fast-response low-pressure differential linear regulator (ChipSourceTek)
  • SC600 - mAhXLifeTM LED Driver with 5.0V a 4.5V or 4.0V Output (Semtech)
  • SC60220 - Sine and cosine output high speed rotary encoder (Semiment)
  • SC60224 - High Speed 12-Bit Magnetic Rotary Encoder (Semiment)
  • SC60228 - High Speed 12-Bit Magnetic Rotary Encoder (Semiment)
  • SC603 - CHARGE PUMP REGULATOR WITH SELECTABLE 5.0V/4.5V OUTPUT (Semtech)
  • SC6038 - Linear Charge Management Controllers (SUNCORE)
  • SC604A - Low Noise - High Efficiency Regulated White LED Driver (Semtech)
  • SC605 - Charge Pump Flash LED Driver (Semtech)
Other Datasheets by Semtech Corporation
  • SC622 - LED Light Management Unit Charge Pump
  • SC620 - Octal LED Driver
  • SC621 - LED Light Management Unit
  • SC621A - Charge Pump
  • SC623 - LED Light Management Unit Charge Pump
  • SC623A - LED Light Management Unit Charge Pump
  • SC624 - LED Light Management Unit Charge Pump
  • SC624A - LED Light Management Unit Charge Pump

Full PDF Text Transcription

Click to expand full text

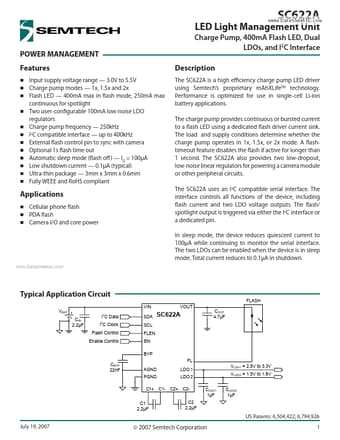

SC622A LED Light Management Unit POWER MANAGEMENT Features „ „ „ „ „ „ „ „ „ „ „ „ Charge Pump, 400mA Flash LED, Dual LDOs, and I2C Interface Description The SC622A is a high efficiency charge pump LED driver using Semtech’s proprietary mAhXLifeTM technology. Performance is optimized for use in single-cell Li-ion battery applications. The charge pump provides continuous or bursted current to a flash LED using a dedicated flash driver current sink. The load and supply conditions determine whether the charge pump operates in 1x, 1.5x, or 2x mode. A flashtimeout feature disables the flash if active for longer than 1 second. The SC622A also provides two low-dropout, low-noise linear regulators for powering a camera module or other peripheral circuits.
