SHT75, SHT71 Humidity and Temperature Sensor

SHT75 Description

Datasheet SHT7x (SHT71, SHT75) Humidity and Temperature Sensor IC Fully calibrated Digital output Low power consumption Excellent long term stability .

SHT75 Features

* a version 4 Silicon sensor chip. Besides a humidity and a temperature sensor the chip contains an amplifier, A/D converter, OTP memory and a digital interface. V4 sensors can be identified by the alpha-numeric traceability code on the sensor cap
* see example “B2G” code on Figure 1. Material

SHT75 Applications

* SHT7x is supplied on FR4 with pins which allows for easy integration or replacement. The same sensor is also available as surface mountable packaging (SHT1x) or on flex print (SHTA1). Sensor Chip SHT7x V4
* for which this datasheet applies

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SHT75, SHT71. Please refer to the document for exact specifications by model.

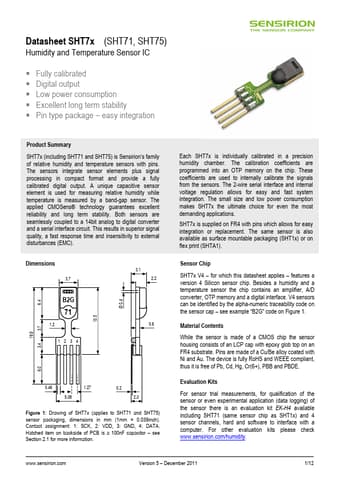

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SHT75, SHT71
Manufacturer
Sensirion
File Size
277.52 KB
Datasheet
SHT71-Sensirion.pdf
Description
Humidity and Temperature Sensor
Note
This datasheet PDF includes multiple part numbers: SHT75, SHT71.
Please refer to the document for exact specifications by model.
