SHV-03 - SHUT-OFF VALVE

This page provides the datasheet information for the SHV-03, a member of the SHV-02 SHUT-OFF VALVE family.

Product Overview

Part number	SHV-03
Manufacturer	Shako
File Size	948.95 KB
Description	SHUT-OFF VALVE
Datasheet	SHV-03 Datasheet

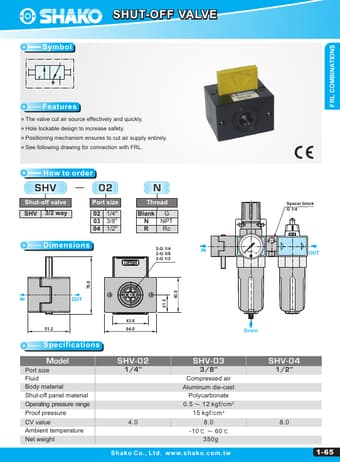

Additional preview pages of the SHV-03 datasheet.

＊The valve cut air source effectively and quickly. ＊Hole lockable design to increase safety. ＊Positioning mechanism ensures to cut air supply entirely. ＊See following drawing for connection with FRL. How to order SHV 02 Shut-off valve SHV 3/2 way Port size 02 1/4" 03 3/8" 04 1/2" Dimensions N Thread Blank G N NPT R Rc 2-G 1/4 2-G 3/8 2-G 1/2 IN Spacer block G 1/4 kg/cm 2 1 10 OUT 70.0 21.5 43.0 IN OUT 51.2 Specifications Model Port size Fluid Body material Shut-off panel material O.
