LSR970 - CHIPLED

Download the LSR970 datasheet PDF. This datasheet also covers the LSR970-JO variant, as both devices belong to the same chipled family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • q 0805 package q Industry standard footprint q low profile q suitable for IR reflow soldering process q for use as optical indicator and backlighting q available taped on reel (8 mm tape) VEO06987 Typ Type LY R970-JO LO R970-JO LS R970-JO Emissionsfarbe Color of Emission Farbe der Lichtaustrittsfläche Color of the Light Emitting Area yellow orange super-red colorless clear Lichtstärke Luminous Intensity IF = 20 mA IV (mcd) ≥ 4.0 (7 typ. ) ≥ 4.0 (7 typ. ) ≥ 4.0 (7 typ. ) Lichtstrom Bestellnu.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LSR970-JO_SiemensSemiconductorGroup.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
LSR976 Chip LED 0805 OSRAM
LSR05 ESD Protector MCC
LSR10140 LED Lamps Wenrun
LSR102 Surface Mount Schottky Barrier Rectifiers Taiwan Semiconductor
LSR102 Surface Mount Schottky Barrier Rectifiers LGE

Other Datasheets by Siemens Semiconductor Group (now Infineon)

Part Number Description
LSR976 CHIP LED

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

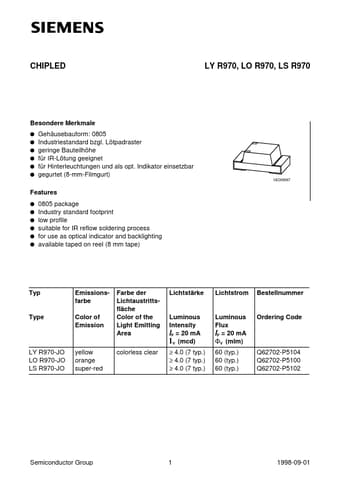

CHIPLED LY R970, LO R970, LS R970 Besondere Merkmale q Gehäusebauform: 0805 q Industriestandard bzgl. Lötpadraster q geringe Bauteilhöhe q für IR-Lötung geeignet q für Hinterleuchtungen und als opt. Indikator einsetzbar q gegurtet (8-mm-Filmgurt) Features q 0805 package q Industry standard footprint q low profile q suitable for IR reflow soldering process q for use as optical indicator and backlighting q available taped on reel (8 mm tape) VEO06987 Typ Type LY R970-JO LO R970-JO LS R970-JO Emissionsfarbe Color of Emission Farbe der Lichtaustrittsfläche Color of the Light Emitting Area yellow orange super-red colorless clear Lichtstärke Luminous Intensity IF = 20 mA IV (mcd) ≥ 4.0 (7 typ.) ≥ 4.0 (7 typ.) ≥ 4.0 (7 typ.
