ILQ621GB Datasheet - Siemens Semiconductor Group

ILQ621GB, MULTI-CHANNEL PHOTOTRANSISTOR OPTOCOUPLER

The ILD/Q621 and ILD/Q621GB are multi-channel phototransistor optocouplers that use GaAs IRLED emitters and high gain NPN silicon phototransistors. These devices are constructed using over/under leadframe optical coupling and double molded insulation technology. This assembly process offers a withst.

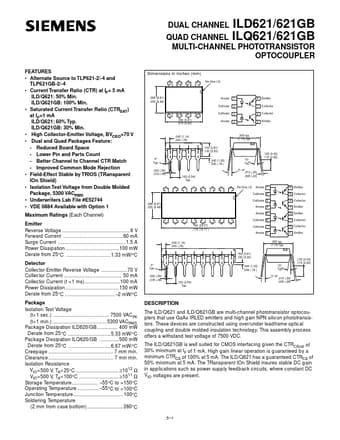

datasheet Preview Page 1 from Datasheet4u.com

ILQ621GB_SiemensSemiconductorGroup.pdf

Preview of ILQ621GB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

ILQ621GB

Manufacturer:

Siemens Semiconductor Group

File Size:

78.95 KB

Description:

MULTI-CHANNEL PHOTOTRANSISTOR OPTOCOUPLER

ILQ621GB Features

* Alternate Source to TLP621-2/-4 and TLP621GB-2/-4

* Current Transfer Ratio (CTR) at IF= 5 mA ILD/Q621: 50% Min. ILD/Q621GB: 100% Min.

* Saturated Current Transfer Ratio (CTRSAT) at IF=1 mA ILD/Q621: 60% Typ. ILD/Q621GB: 30% Min.

* High Collector-Emitter Voltage, BVC
