SY6924 - Multi-Cell Li-Ion Battery Charger

Datasheet Summary

Description

SY6924 is a 4-14V input, 2.5A multi-cell Li-Ion battery step-down charger.

The charge current up to 2.5A can be programmed by using the external resistor for different portable applications.

Features

  • Integrated Synchronous Buck and Reverse Blocking FET with 16V Rating Adaptive Input Power Limit for 4-14V Wide Input Voltage Maximum 2.5A Programmable Charge Current 4.2V and 4.35V Constant Voltage Selectable +/-0.5% Cell Voltage Accuracy Support Single-cell or Two-cell Battery Pack External Shutdown Function Input Voltage UVLO and OVP Thermal Fold-back Protection Over Temperature Protection Battery Short Protection Programmable Charge Timeout Charge Status Indication Low Profile QFN3×3 Package.

📥 Download Datasheet

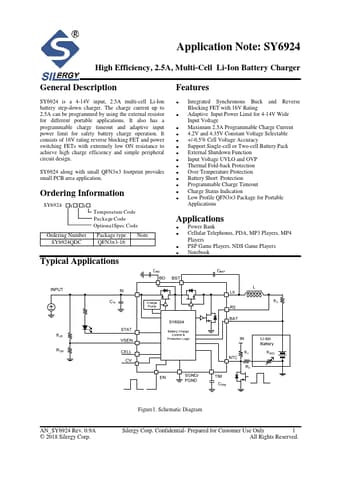

Datasheet preview – SY6924

Datasheet Details

Part number SY6924
Manufacturer Silergy
File Size 6.54 MB
Description Multi-Cell Li-Ion Battery Charger
Datasheet download datasheet SY6924 Datasheet
