SH66P58 - OTP 6K 4-bit Microcontroller

Description

SH66P58 is a single-chip 4-bit micro-controller.

Features

  • SH6610D-based Single-chip 4-bit Micro-controller With LCD Driver and 16-bit Sigma-delta ADC.
  • OTP ROM: 6K X 16 bits.
  • RAM: - 57 System Control Register - 464 Data Memory - 32 LCD RAM.
  • Operation Voltage: 2.4V - 5.5V.
  • 20 CMOS Bi-directional I/O Pins.
  • Built-in Pull-high Resistor For PORTA - PORTE.
  • 8-level Stack (Including Interrupts).
  • One 8-bit Auto Re-loaded Timer/Counter.
  • Base Timer.
  • Warm-up Timer.

📥 Download Datasheet

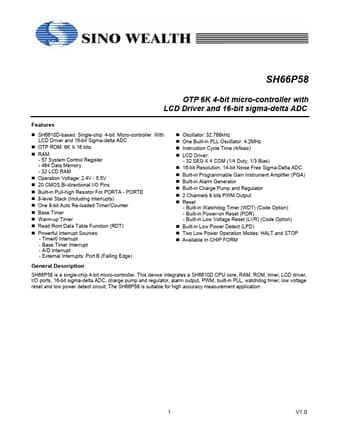

Datasheet preview – SH66P58

Datasheet Details

Part number SH66P58
Manufacturer Sino Wealth
File Size 426.15 KB
Description OTP 6K 4-bit Microcontroller
Datasheet download datasheet SH66P58 Datasheet
Additional preview pages of the SH66P58 datasheet.

📁 Similar Datasheet

  • SH66P20A - OTP 4-Bit Microcontroller (Sino Wealth Microelectronic)
  • SH66P22A - OTP 4-Bit Microcontroller (Sino Wealth Microelectronic)
  • SH602 - Pulse Modulator (ETC)
  • SH67K91 - 20K 4-Bit Micro Controller (Sino Wealth Microelectronic)
  • SH67K93 - 24K 4-Bit Micro Controller (Sino Wealth Microelectronic)
  • SH67L18 - 8K 4-bit Low Power Micro-controller (Sino Wealth Microelectronic)
  • SH67L19 - 4K 4-Bit Micro Controller (Sino Wealth Microelectronic)
  • SH67P33 - OTP 4-Bit Micro Controller (Sino Wealth Microelectronic)
  • SH67P54 - OTP 4-Bit Micro Controller (Sino Wealth Microelectronic)
  • SH68N65DM6AG - N-channel Power MOSFET (STMicroelectronics)
Other Datasheets by Sino Wealth
  • SH66P51 - OTP 2K 4-bit micro-controller
  • SH66P51A - OTP 2K 4-bit Microcontroller
  • SH66P12 - OTP 4-bit Microcontroller
  • SH66P13A - OTP 4-bit Microcontroller
  • SH66P14A - OTP 4-bit Microcontroller
  • SH66P22A - OTP 4-Bit Microcontroller
  • SH6610 - instructions introduction
  • SH6613 - 4K 4-Bit Microcontroller

Full PDF Text Transcription

Click to expand full text
SH66P58 OTP 6K 4-bit micro-controller with LCD Driver and 16-bit sigma-delta ADC Features „ SH6610D-based Single-chip 4-bit Micro-controller With LCD Driver and 16-bit Sigma-delta ADC „ OTP ROM: 6K X 16 bits „ RAM: - 57 System Control Register - 464 Data Memory - 32 LCD RAM „ Operation Voltage: 2.4V - 5.5V „ 20 CMOS Bi-directional I/O Pins „ Built-in Pull-high Resistor For PORTA - PORTE „ 8-level Stack (Including Interrupts) „ One 8-bit Auto Re-loaded Timer/Counter „ Base Timer „ Warm-up Timer „ Read Rom Data Table Function (RDT) „ Powerful Interrupt Sources: - Timer0 Interrupt - Base Timer Interrupt - A/D Interrupt - External Interrupts: Port B (Falling Edge) „ Oscillator: 32.768kHz „ One Built-in PLL Oscillator: 4.
