SM2001CSK - Dual MOSFET

Description

D1 D1 D2 D2 S1 G1 S2 G2 Top View of SOP-8 (8) (7) D1 D1 (6) (5) D2 D2 (2) (4) G1 G2 S1 S2 (1) (3) N-Channel MOSFET P-Channel MOSFET Ordering and Marking Information SM2001CS SM2001CS K : Assembly Material Handling Code Temperature Range Package Code 2001 XXXXX Package Code K : SOP-8 Operatin

Features

  • N-Channel 20V/9.5A, RDS(ON) =14mW(max. ) @ VGS = 4.5V RDS(ON) =18mW(max. ) @ VGS = 2.5V.
  • P-Channel -20V/-6A, RDS(ON) =45mW(max. ) @ VGS =-4.5V RDS(ON) =65mW(max. ) @ VGS =-2.5V.
  • Reliable and Rugged.
  • Lead Free and Green Devices Available (RoHS Compliant).

📥 Download Datasheet

Datasheet Details

Part number SM2001CSK
Manufacturer Sinopower
File Size 312.36 KB
Description Dual MOSFET
Datasheet download datasheet SM2001CSK Datasheet

📁 Similar Datasheet

  • SM200 - SNAP Engine Modules (Synapse)
  • SM200 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MIC)
  • SM2000 - Standard Recovery SMD Rectifier Diodes (Diotec)
  • SM2000 - Surface Mount Rectifier (Luguang Electronic)
  • SM2000 - silicon rectifier diodes (Semikron)
  • SM2000 - SURFACE MOUNT GLASS PASSIVATED RECTIFIER (DACO SEMICONDUCTOR)
  • SM200A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MIC)
  • SM20 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MIC)
  • SM20100C - Schottky Barrier Rectifiers (Eris)
  • SM20100D - 20.0 AMP Surface Mount Schottky Barrier Rectifiers (SeCoS Halbleitertechnologie)
Other Datasheets by Sinopower

Full PDF Text Transcription

Click to expand full text

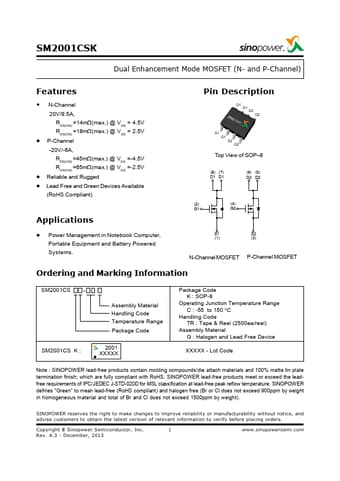

SM2001CSK ® Dual Enhancement Mode MOSFET (N- and P-Channel) Features · N-Channel 20V/9.5A, RDS(ON) =14mW(max.) @ VGS = 4.5V RDS(ON) =18mW(max.) @ VGS = 2.5V · P-Channel -20V/-6A, RDS(ON) =45mW(max.) @ VGS =-4.5V RDS(ON) =65mW(max.) @ VGS =-2.5V · Reliable and Rugged · Lead Free and Green Devices Available (RoHS Compliant) Applications · Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems.
