SM2014NSKP N-Channel MOSFET

SM2014NSKP Description

SM2014NSKP .
DDDD S S SG DFN5x6-8 D (5, 6) Pin 1 Applications G (4). Power Management in Notebook Computer, Portable Equipment and Battery Powered Syste.

SM2014NSKP Features

* 20V/13.8A, RDS(ON)= 19.5mW(max. ) @ VGS=4.5V RDS(ON)= 27mW(max. ) @ VGS=2.5V
* Reliable and Rugged
* Lead Free and Green Devices Available (RoHS Compliant)

SM2014NSKP Applications

* G (4)
* Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems. S (1, 2, 3) N-Channel MOSFET Ordering and Marking Information SM2014NS Assembly Material Handling Code Temperature Range Package Code Package Code KP : DFN5x6-8 Operating Junction Temperature Ra

📥 Download Datasheet

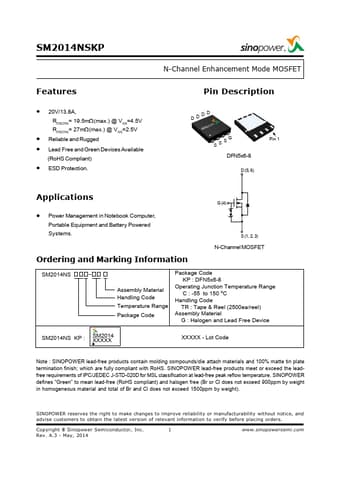

Preview of SM2014NSKP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM2014NSKP
Manufacturer
Sinopower
File Size
286.17 KB
Datasheet
SM2014NSKP-Sinopower.pdf
Description
N-Channel MOSFET
