SM2310NAA N-Channel MOSFET

SM2310NAA Description

SM2310NAA N-Channel Enhancement Mode MOSFET .
D S G SOT-23 D (2) Applications. Power Management in DC/AC Inverer Systems.

SM2310NAA Features

* 60V/2.2A RDS(ON)=100mΩ(max. )@VGS=10V RDS(ON)=120mΩ(max. )@VGS=4.5V RDS(ON)=145mΩ(max. )@VGS=2.5V
* 100% UIS + Rg Tested
* Reliable and Rugged

SM2310NAA Applications

* Power Management in DC/AC Inverer Systems. G (1) S (3) N-Channel MOSFET Ordering and Marking Information SM2310NA SM2310NA A : Assembly Material Handling Code Temperature Range Package Code Package Code A : SOT-23 Operating Junction Temperature Range C : -55 to 150 oC Handling Code TR

📥 Download Datasheet

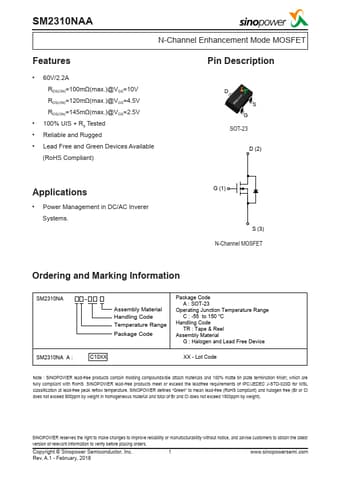

Preview of SM2310NAA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM2310NAA
Manufacturer
Sinopower
File Size
450.41 KB
Datasheet
SM2310NAA-Sinopower.pdf
Description
N-Channel MOSFET
