SM5A24NSF N-Channel MOSFET

SM5A24NSF Description

SM5A24NSF/SM5A24NSFP/ SM5A24NSU/SM5A24NSUB ® N-Channel Enhancement Mode MOSFET .
Applications. AC/DC Power Conversion in Switched Mode Power Supplies (SMPS). Uninterruptible Power Supply (UPS),. Adapter.

SM5A24NSF Features

* 500V/10A, RDS(ON)= 0.54W(max. ) @ VGS= 10V V @Tj, max=560V (typ. ) DS
* Reliable and Rugged
* Avalanche Rated

SM5A24NSF Applications

* AC/DC Power Conversion in Switched Mode Power Supplies (SMPS).
* Uninterruptible Power Supply (UPS),
* Adapter. D GDS TO-220 GDS TO-220-FP D S G TO-252 G S D G S TO-251 N-Channel MOSFET Ordering and Marking Information SM5A24NS Assembly Material Handling Code Temperature Ran

📥 Download Datasheet

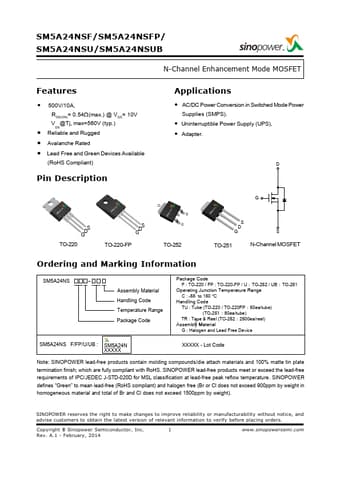

Preview of SM5A24NSF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM5A24NSF
Manufacturer
Sinopower
File Size
348.84 KB
Datasheet
SM5A24NSF-Sinopower.pdf
Description
N-Channel MOSFET
