STT49GK16 - Thyristor Modules

Download the STT49GK16 datasheet PDF (STT49 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for thyristor modules.

Features

  • International standard package.
  • Copper base plate.
  • Planar passivated chips.
  • Isolation voltage 3600 V~.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STT49_SirectifierSemiconductors.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number STT49GK16
Manufacturer Sirectifier Semiconductors
File Size 637.14 KB
Description Thyristor Modules
Datasheet download datasheet STT49GK16 Datasheet

📁 Similar Datasheet

  • STT432S - N-Channel MOSFET (SamHop Microelectronics)
  • STT4443 - P-Channel MOSFET (SeCoS)
  • STT4660 - N-Channel MOSFET (SamHop Microelectronics)
  • STT468A - N-Channel MOSFET (SamHop Microelectronics)
  • STT4P3LLH6 - P-Channel Power MOSFET (STMicroelectronics)
  • STT4PF20V - P-CHANNEL STripFET II POWER MOSFET (STMicroelectronics)
  • STT-104 - ENCAPSUALTED TRIGGER TRANSFORMER (ETC)
  • STT01L07 - N-Channel MOSFET (SamHop Microelectronics)
  • STT01L10 - N-Channel MOSFET (SamHop Microelectronics)
  • STT02N10 - N-Channel MOSFET (SamHop Microelectronics)
Other Datasheets by Sirectifier Semiconductors

Full PDF Text Transcription

Click to expand full text

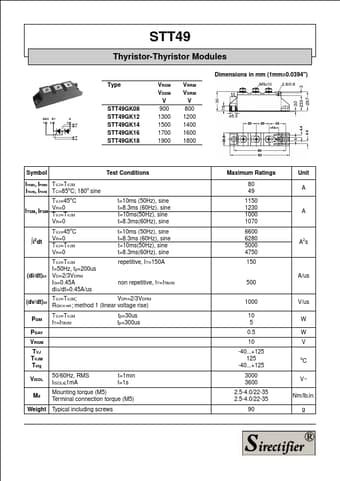

www.DataSheet.co.kr STT49 Thyristor-Thyristor Modules Dimensions in mm (1mm=0.0394") Type VRSM VDSM V 900 1300 1500 1700 1900 VRRM VDRM V 800 1200 1400 1600 1800 STT49GK08 STT49GK12 STT49GK14 STT49GK16 STT49GK18 Symbol ITRMS, IFRMS TVJ=TVJM ITAVM, IFAVM TC=85oC; 180o sine TVJ=45oC VR=0 TVJ=TVJM VR=0 TVJ=45oC VR=0 TVJ=TVJM VR=0 TVJ=TVJM f=50Hz, tp=200us VD=2/3VDRM IG=0.45A diG/dt=0.45A/us Test Conditions Maximum Ratings 80 49 Unit A ITSM, IFSM t=10ms (50Hz), sine t=8.3ms (60Hz), sine t=10ms(50Hz), sine t=8.3ms(60Hz), sine t=10ms (50Hz), sine t=8.3ms (60Hz), sine t=10ms(50Hz), sine t=8.3ms(60Hz), sine repetitive, IT=150A 1150 1230 1000 1070 6600 6280 5000 4750 150 A i dt 2 A2s (di/dt)cr A/us non repetitive, IT=ITAVM 500 1000 10 5 0.5 10 -40...+125 125 -40...
