SKY67130-396LF Datasheet - Skyworks

0.7 - 2.7GHz High Linearity Amplifier Driver

SKY67130-396LF Features

* Ultra efficient linear performance

* High OIP3 performance at 2600 MHz: +39 dBm with 3.3 V and 22 mA

* Low Noise Figure: 2.6 dB @ 2.6 GHz and 22 mA

* Adjustable supply current

* Power-down capability

* Unconditionally stable to 24 GHz

* Tempe

SKY67130-396LF General Description

The SKY67130-396LF is an InGaP HBT linear amplifier driver with an active bias and superior low-current performance. The advanced InGaP HBT process provides excellent return loss, low noise, and high linearity. The internal active bias circuitry provides stable performance over temperature and proce.

SKY67130-396LF Datasheet (1.47 MB)

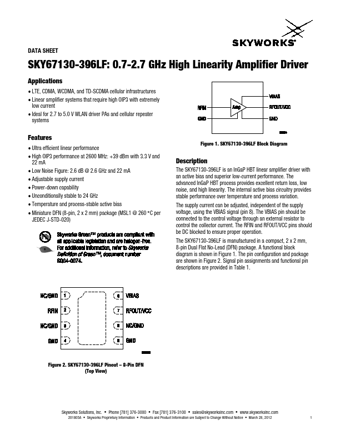

Preview of SKY67130-396LF PDF

Datasheet Details

Part number:

SKY67130-396LF

Manufacturer:

Skyworks

File Size:

1.47 MB

Description:

0.7 - 2.7ghz high linearity amplifier driver.
DATA SHEET SKY67130-396LF: 0.7-2.7 GHz High Linearity Amplifier Driver Applications LTE, CDMA, WCDMA, and TD-SCDMA cellular infrastructures .
