SKY12143-315 - Variable Attenuator

Datasheet Summary

Description

The SKY12143-315 is a voltage controlled, variable attenuator from Skyworks series of HIP3™ components.

It is specifically designed and specified for use as a wide dynamic range, lowdistortion attenuator for AMPS and GSM base station applications centered at 881.5 MHz and 942.5 MHz.

Features

  • 23 dB attenuation range.
  • 1.5 dB insertion loss, 1.5:1 SWR www. DataSheet4U. com.
  • 12 V control voltage.
  • 43 dBm IP3.
  • Small footprint LGA package.
  • Designed for AMPS and GSM base stations.
  • Lead (Pb)-free and RoHS-compliant.
  • Connection Diagram RF In/Out 10 pF Vcontrol 10 pF Control Voltage RF In/Out Vcontrol.

📥 Download Datasheet

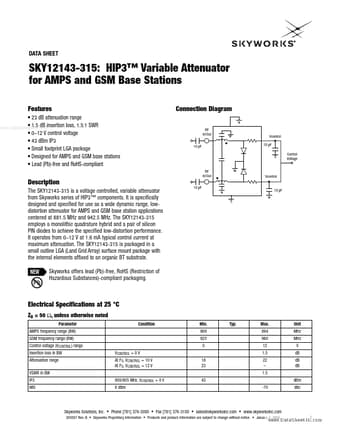

Datasheet preview – SKY12143-315
