LCX026ALE Datasheet - Sony

LCX026ALE, 2.3cm (0.9-inch) Black-and-White LCD Panel

The LCX026ALE is a 2.3cm diagonal active matrix TFT-LCD panel addressed by polycrystalline silicon super thin film transistors with a built-in peripheral driving circuit. Use of three LCX026ALE panels provides a full-color representation. The striped arrangement suitable for data projectors is capab.

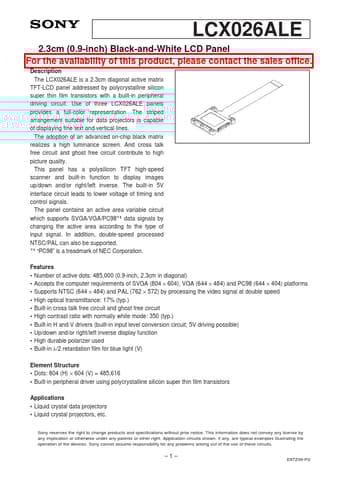

Datasheet Preview Page 1

LCX026ALE_SonyCorporation.pdf

LCX026ALE Datasheet Preview — Preview of LCX026ALE PDF

LCX026ALE Datasheet Preview Page 2

LCX026ALE Datasheet Preview Page 3

Datasheet Details

Part number:

LCX026ALE

Manufacturer:

Sony

File Size:

346.76 KB

Description:

2.3cm (0.9-inch) Black-and-White LCD Panel

LCX026ALE Features

* Number of active dots: 485,000 (0.9-inch, 2.3cm in diagonal)

* Accepts the computer requirements of SVGA (804 × 604), VGA (644 × 484) and PC98 (644 × 404) platforms

* Supports NTSC (644 × 484) and PAL (762 × 572) by processing the video signal at double speed

* High
