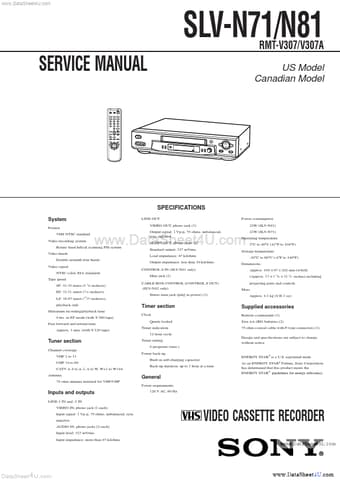

www.DataSheet4U.com SLV-N71/N81 SERVICE MANUAL 1 4 7 2 5 8 0 3 6 9 RMT-V307/ V307A US Model Canadian Model SPECIFICATIONS System Format VHS NTSC standard Video recording system Video heads Double azimuth four heads Video signal NTSC color, EIA standards Tape speed SP: 33.35 mm/s (1 3/8 inches/s) EP: 11.11 mm/s (7/16 inches/s) LP: 16.67 mm/s ( / inches/s), playback only Maximum recording/playback time 8 hrs. in EP mode (with T-160 tape) Fast-forward and rewind time Approx. 3 min. (with T-120 tape) Clock Quartz locked Timer indication 12-hour cycle Timer setting 8 programs (max.) Power back-up Built-in self-charging capacitor Back-up duration: up to 1 hour at a time ENERGY STAR is a U.S. registered mark.
