BZW03C200 Datasheet Silicon Zener Diodes

Manufacturer: SunMate

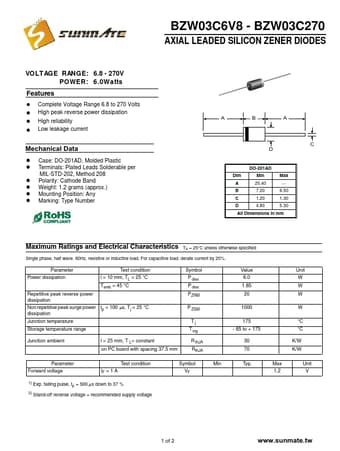

Overview: BZW03C6V8 - BZW03C270 AXIAL LEADED SILICON ZENER DIODES VOLTAGE RANGE: 6.8 - 27 0V POWER: 6.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Key Features

  • Complete Voltage Range 6.8 to 270 Volts.
  • High peak reverse power dissipation.
  • High reliability.
  • Low leakage current Mechanical Data ! Case: DO-201AD, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 1.2 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-201AD Dim Min Max A 25.40 ¾ B 7.20 9.50 C 1.20 1.30 D 4.80 5.30 All Dimensions in mm Maximum Ratings and Electr.
