HVM10 Datasheet High Voltage Diode

Manufacturer: SunMate

Download the HVM10 datasheet PDF. This datasheet also includes the HVM5 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HVM5-SunMate.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HVM10
Manufacturer SunMate
File Size 405.93 KB
Description High Voltage Diode
Datasheet download datasheet HVM10 Datasheet

Overview

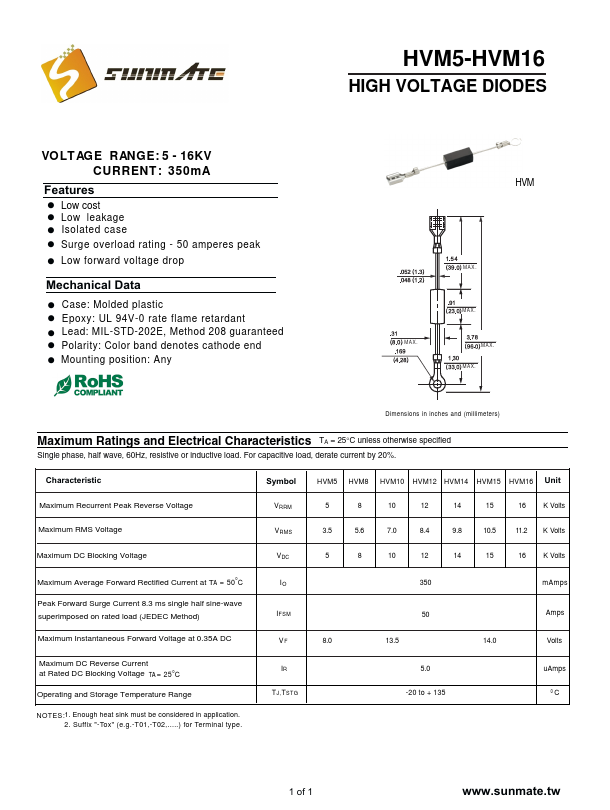

HVM5-HVM16 HIGH VOLTAGE DIODES VOLT AGE RANGE: 5 - 16 KV CURRENT: 350m.

Key Features

  • Low cost.
  • Low leakage.
  • Isolated case.
  • Surge overload rating - 50 amperes peak.
  • Low forward voltage drop Mechanical Data.
  • Case: Molded plastic.
  • Epoxy: UL 94V-0 rate flame retardant.
  • Lead: MIL-STD-202E, Method 208 guaranteed.
  • Polarity: Color band denotes cathode end.
  • Mounting position: Any HVM MAX. MAX. MAX. MAX. MAX. Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Sin.
