HVM12 - High Voltage Diode

This page provides the datasheet information for the HVM12, a member of the HVM5 High Voltage Diode family.

Datasheet Summary

Features

  • Low cost.
  • Low leakage.
  • Isolated case.
  • Surge overload rating - 50 amperes peak.
  • Low forward voltage drop Mechanical Data.
  • Case: Molded plastic.
  • Epoxy: UL 94V-0 rate flame retardant.
  • Lead: MIL-STD-202E, Method 208 guaranteed.
  • Polarity: Color band denotes cathode end.
  • Mounting position: Any HVM MAX. MAX. MAX. MAX. MAX. Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Sin.

📥 Download Datasheet

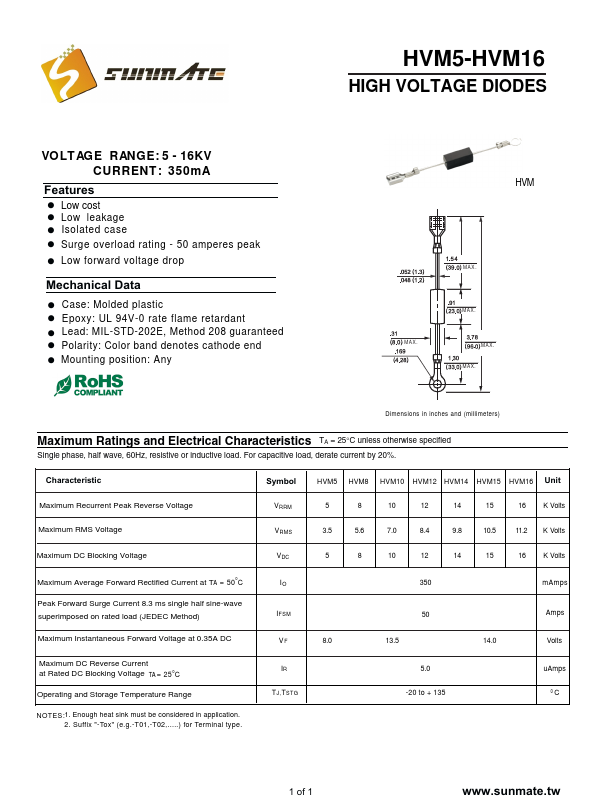

Datasheet preview – HVM12

Datasheet Details

Part number HVM12
Manufacturer SunMate
File Size 405.93 KB
Description High Voltage Diode
Datasheet download datasheet HVM12 Datasheet
Additional preview pages of the HVM12 datasheet.

📁 Similar Datasheet

  • HVM12 - HIGH VOLTAGE ASSEMBLIED RECTIFIER (Rectron Semiconductor)
  • HVM12 - TECHNICAL SPECIFICATIONS OF HIGH VOLTAGE ASSEMBLIED RECTIFIER (Dc Components)
  • HVM12 - 0.35 & 0.45AMPS.HIGH VOLTAGE ASSEMBLIED RECTIFIER (YFD)
  • HVM12 - HIGH VOLTAGE SILICON RECTIFIER (MIC)
  • HVM12L - HIGH VOLTAGE ASSEMBLIED RECTIFIER (Rectron)
  • HVM10 - HIGH VOLTAGE ASSEMBLIED RECTIFIER (Rectron Semiconductor)
  • HVM10 - TECHNICAL SPECIFICATIONS OF HIGH VOLTAGE ASSEMBLIED RECTIFIER (Dc Components)
  • HVM10 - 0.35 & 0.45AMPS.HIGH VOLTAGE ASSEMBLIED RECTIFIER (YFD)
  • HVM10 - HIGH VOLTAGE SILICON RECTIFIER (MIC)
  • HVM10L - HIGH VOLTAGE ASSEMBLIED RECTIFIER (Rectron)
Other Datasheets by SunMate
  • HVM10 - High Voltage Diode
  • HVM14 - High Voltage Diode
  • HVM15 - High Voltage Diode
  • HVM16 - High Voltage Diode
  • HVM5 - High Voltage Diode
  • HVM8 - High Voltage Diode

Full PDF Text Transcription

Click to expand full text
HVM5-HVM16 HIGH VOLTAGE DIODES VOLT AGE RANGE: 5 - 16 KV CURRENT: 350m A Features · Low cost · Low leakage · Isolated case · Surge overload rating - 50 amperes peak · Low forward voltage drop Mechanical Data · Case: Molded plastic · Epoxy: UL 94V-0 rate flame retardant · Lead: MIL-STD-202E, Method 208 guaranteed · Polarity: Color band denotes cathode end · Mounting position: Any HVM MAX. MAX. MAX. MAX. MAX. Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
