HVM16

The HVM16 is High Voltage Diode designed by SunMate.

Product Overview

SunMate

Part number	HVM16, HVM5
Manufacturer	SunMate
File Size	405.93 KB
Description	High Voltage Diode
Datasheet	HVM5-SunMate.pdf
Note	This datasheet PDF includes multiple part numbers: HVM16, HVM5. Please refer to the document for exact specifications by model.

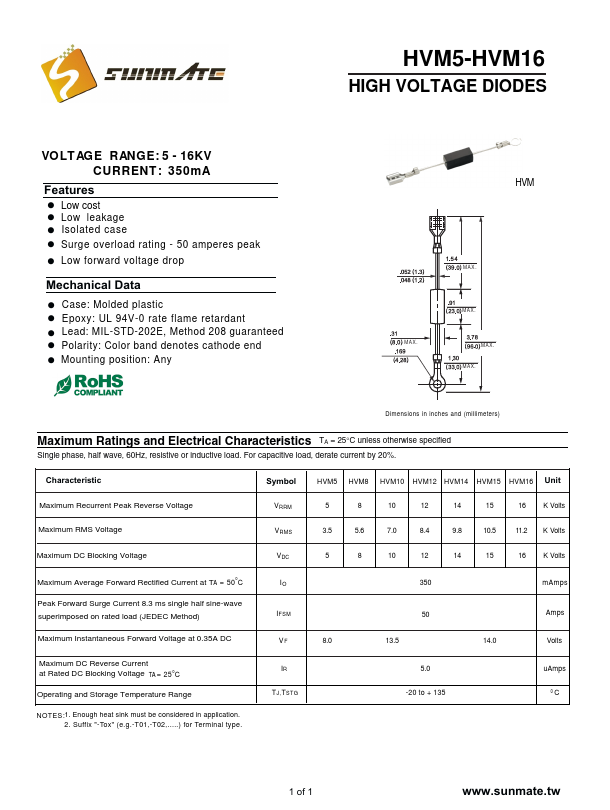

Additional preview pages of the HVM16 datasheet.

Low cost.
Low leakage.
Isolated case.
Surge overload rating - 50 amperes peak.
Low forward voltage drop Mechanical Data.
Case: Molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Lead: MIL-STD-202E, Method 208 guaranteed.
Polarity: Color band denotes cathode end.
Mounting position: Any HVM MAX. MAX. MAX. MAX. MAX. Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Sin.
