HVM5 Datasheet High Voltage Diode

Manufacturer: SunMate

📥 Download Datasheet

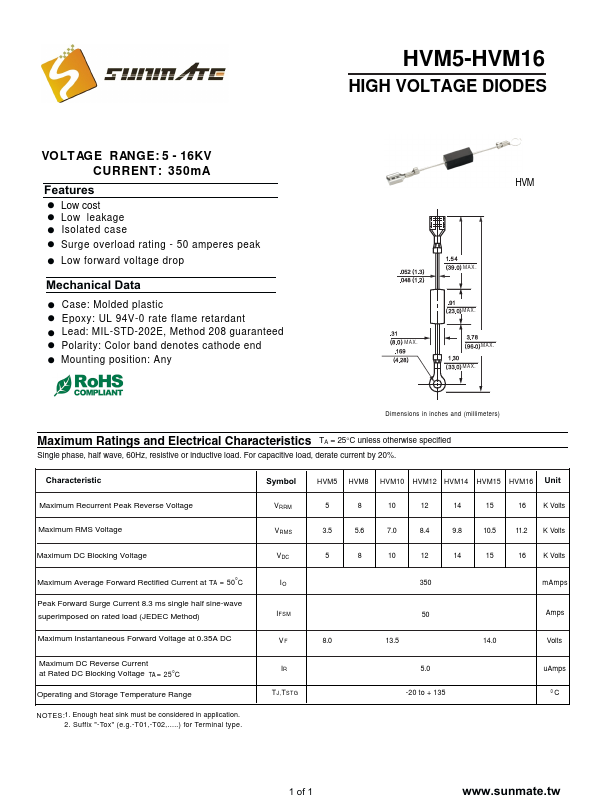

HVM5 high voltage diode by SunMate - Datasheet Preview

Datasheet Details

Part number	HVM5
Manufacturer	SunMate
File Size	405.93 KB
Description	High Voltage Diode
Datasheet	HVM5 Datasheet

Overview

HVM5-HVM16 HIGH VOLTAGE DIODES VOLT AGE RANGE: 5 - 16 KV CURRENT: 350m.

Key Features

Low cost.
Low leakage.
Isolated case.
Surge overload rating - 50 amperes peak.
Low forward voltage drop Mechanical Data.
Case: Molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Lead: MIL-STD-202E, Method 208 guaranteed.
Polarity: Color band denotes cathode end.
Mounting position: Any HVM MAX. MAX. MAX. MAX. MAX. Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Sin.
