TPSMA15CA, TPSMA6.8CA - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR DIODES

Name: TPSMA15CA
SKU: TPSMA15CA-1489298

SunMate

The TPSMA15CA by SunMate is a SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	TPSMA15CA, TPSMA6.8CA
Manufacturer	SunMate
File Size	0.96 MB
Description	SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR DIODES
Datasheet	TPSMA6.8CA-SunMate.pdf
Note	This datasheet PDF includes multiple part numbers: TPSMA15CA, TPSMA6.8CA. Please refer to the document for exact specifications by model.

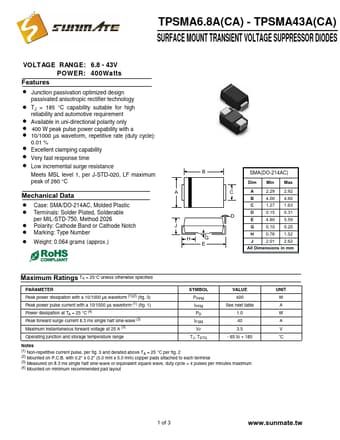

Additional preview pages of the TPSMA15CA datasheet.

! Junction passivation optimized design passivated anisotropic rectifier technology ! TJ = 185 °C capability suitable for high reliability and automotive requirement ! Available in uni-directional polarity only ! 400 W peak pulse power capability with a ! 10/1000 µs waveform, repetitive rate (duty cycle): 0.01 % ! Excellent clamping capability ! Very fast response time ! Low incremental surge resistance Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Mechanical Data ! Case: SMA/DO-21.
