1SMA300C - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE

Download the 1SMA300C datasheet PDF. This datasheet also covers the 1SMA5.0 variant, as both devices belong to the same surface mount transient volage suppessor diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx. ) B A J H G E SMA(DO-214AC) Dim Min Max C A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D D.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1SMA5.0-Sunmate.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1SMA300C
Manufacturer Sunmate
File Size 720.41 KB
Description SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
Datasheet download datasheet 1SMA300C Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1SMA30AT3 Zener Transient Voltage Suppressors Motorola Inc
1SMA30AT3 400 Watt Peak Power Zener Transient Voltage Suppressors ON Semiconductor
1SMA30AT3G 400 Watt Peak Power Zener Transient Voltage Suppressors ON Semiconductor
1SMA30CAT3 Zener Transient Voltage Suppressors Motorola Inc
1SMA30CAT3G TVS Diodes Littelfuse

Other Datasheets by Sunmate

Part Number Description
1SMA300CA SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
1SMA300 SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
1SMA300A SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
1SMA30 SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
1SMA30A SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE

Full PDF Text Transcription

Click to expand full text

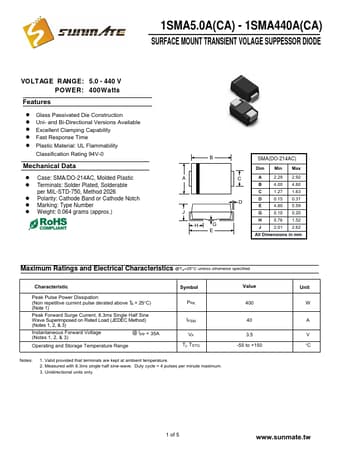

1SMA5.0A(CA) - 1SMA440A(CA) SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE VOLTAGE RANGE: 5.0 - 440 V POWER: 400Wa t t s Features ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx.) B A J H G E SMA(DO-214AC) Dim Min Max C A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D D 0.15 0.31 E 4.80 5.59 G 0.10 0.20 H 0.76 1.52 J 2.01 2.
