1SMC54 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Download the 1SMC54 datasheet PDF. This datasheet also covers the 1SMC5.0 variant, as both devices belong to the same surface mount transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Features

  • ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case :DO-214AB(SMC) ! Terminals : Solder plated , solderable per MIL-STD-750, method 2026 ! Polarity Indicator: Cathode Band (Note: Bi-directional devices have no polarity indicator. ) ! Marking: Date Code and Marking Code See Page 2 ! Weight: 0.21 grams (approximate) SMC/DO-.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1SMC5.0-Sunmate.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1SMC54
Manufacturer Sunmate
File Size 714.64 KB
Description SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet 1SMC54 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1SMC54A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Bruckewell
1SMC54A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR EIC
1SMC54A SURFACE MOUNT SILICON UNI-DIRECTIONAL GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS Central Semiconductor
1SMC54AT3 Zener Transient Voltage Suppressors ON Semiconductor
1SMC54AT3G 1500 Watt Peak Power Zener Transient Voltage Suppressors Littelfuse

Other Datasheets by Sunmate

Part Number Description
1SMC54A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
1SMC54C SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
1SMC54CA SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
1SMC5.0 SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
1SMC5.0A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription

Click to expand full text

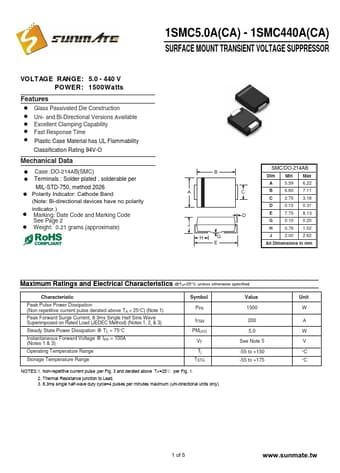

1SMC5.0A(CA) - 1SMC440A(CA) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR VOLTAGE RANGE: 5.0 - 440 V POWER: 1500Wa t t s Features ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case :DO-214AB(SMC) ! Terminals : Solder plated , solderable per MIL-STD-750, method 2026 ! Polarity Indicator: Cathode Band (Note: Bi-directional devices have no polarity indicator.) ! Marking: Date Code and Marking Code See Page 2 ! Weight: 0.21 grams (approximate) SMC/DO-214AB B Dim Min Max A 5.59 6.22 A C B 6.60 7.11 C 2.75 3.18 D 0.15 0.31 D E 7.75 8.13 G 0.10 0.20 J H 0.76 1.52 HG E J 2.00 2.
