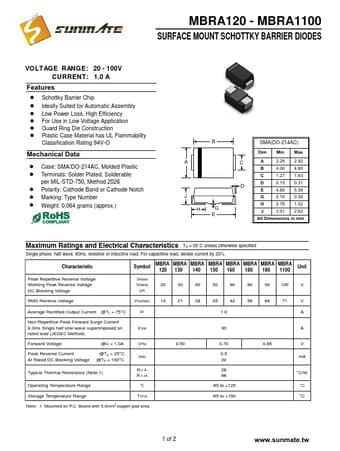

MBRA120 - MBRA1100
SURFACE MOUNT SCHOTTKY BARRIER DIODES
VOLTAGE RANGE: 20 - 100V CURRENT: 1.0 A
Features
! Schottky Barrier Chip
! Ideally Suited for Automatic Assembly
! Low Power Loss, High Efficiency ! For Use in Low Voltage Application ! Guard Ring Die Construction ! Plastic Case Material has UL Flammability
Classification Rating 94V-O
B SMA(DO-214AC)
M ec ha n ic al D a ta Dim Min Max
! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable
A
C A 2.29 2.92
B 4.00 4.60
C 1.27 1.63
per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number
J
D D 0.15 0.31
E 4.80 5.59 G 0.
