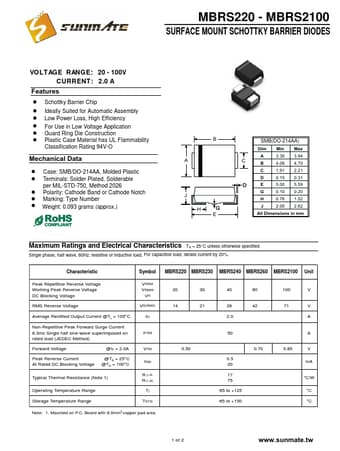

MBRS220 - MBRS2100
SURFACE MOUNT SCHOTTKY BARRIER DIODES
VOLTAGE RANGE: 20 - 100V
CURRENT: 2.0 A
Features
! Schottky Barrier Chip
! Ideally Suited for Automatic Assembly ! Low Power Loss, High Efficiency ! For Use in Low Voltage Application ! Guard Ring Die Construction ! Plastic Case Material has UL Flammability
Classification Rating 94V-O
Mechanical Data
! Case: SMB/DO-214AA, Molded Plastic ! Terminals: Solder Plated, Solderable
per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.093 grams (approx.)
B A
J H
G E
SMB(DO-214AA)
Dim Min Max A 3.30 3.94
C B 4.06 4.70
C 1.91 2.21 D 0.15 0.31
D E 5.00 5.59
G 0.10 0.20 H 0.76 1.52 J 2.00 2.
