Suntan® Su®

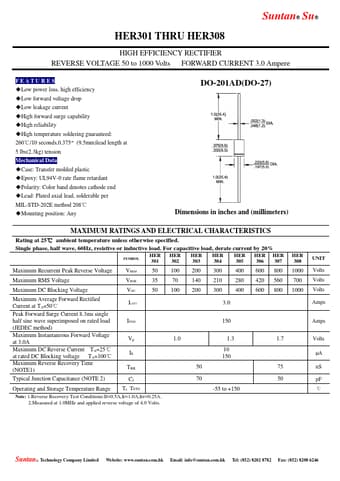

HER301 THRU HER308
HIGH EFFICIENCY RECTIFIER REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 3.0 Ampere
FEATU RE S ◆Low power loss, high efficiency ◆Low forward voltage drop ◆Low leakage current ◆High forward surge capability ◆High reliability ◆High temperature soldering guaranteed: 260℃/10 seconds,0.375”(9.5mm)lead length at
5 lbs(2.3kg) tension
Mechanical Data ◆Case: Transfer molded plastic ◆Epoxy: UL94V-0 rate flame retardant ◆Polarity: Color band denotes cathode end ◆Lead: Plated axial lead, solderable per MIL-STD-202E method 208℃ ◆Mounting position: Any
DO-201AD(DO-27)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
HER301 Datasheet
