KBU602 - SINGLE-PHASE BRIDGE RECTIFIER

This page provides the datasheet information for the KBU602, a member of the KBU6005 SINGLE-PHASE BRIDGE RECTIFIER family.

📥 Download Datasheet

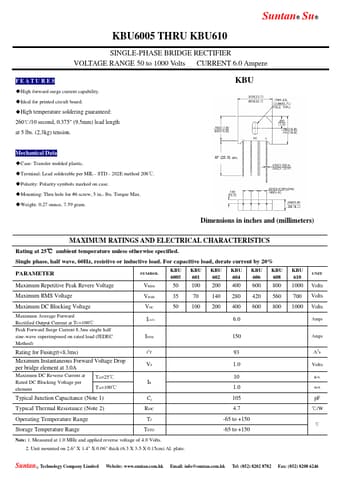

Datasheet preview – KBU602

Datasheet Details

Part number KBU602
Manufacturer Suntan
File Size 192.43 KB
Description SINGLE-PHASE BRIDGE RECTIFIER
Datasheet download datasheet KBU602 Datasheet
Additional preview pages of the KBU602 datasheet.

📁 Similar Datasheet

  • KBU602 - 6.0A SINGLE PHASE BRIDGE RECTIFIER (WON-TOP)
  • KBU602 - Silicon Bridge Rectifiers (Comchip Technology)
  • KBU602 - 6.0A Single-Phase Silicon Bridge Rectifier (SEP ELECTRONIC)
  • KBU602 - Bridge Rectifier (Formosa MS)
  • KBU602 - Single Phase 6.0 Amps. Glass Passivated Bridge Rectifiers (JGD)
  • KBU602 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Crownpo)
  • KBU602 - Single Phase 6A Silicon Bridge Rectifiers (UPM)
  • KBU602 - Amperes / KBU (Max-lion)
  • KBU602 - 6.0A BRIDGE RECTIFIER (TGS)
  • KBU602 - Silicon Bridge Rectifiers (Taiwan Semiconductor)
Other Datasheets by Suntan
  • KBU6005 - SINGLE-PHASE BRIDGE RECTIFIER
  • KBU601 - SINGLE-PHASE BRIDGE RECTIFIER
  • KBU604 - SINGLE-PHASE BRIDGE RECTIFIER
  • KBU606 - SINGLE-PHASE BRIDGE RECTIFIER
  • KBU608 - SINGLE-PHASE BRIDGE RECTIFIER
  • KBU610 - SINGLE-PHASE BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text
Suntan® Su® KBU6005 THRU KBU610 SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 6.0 Ampere FEATU RE S ◆High forward surge current capability. ◆Ideal for printed circult board. ◆High temperature soldering guaranteed: 260℃/10 second, 0.375" (9.5mm) lead length at 5 lbs. (2.3kg) tension. KBU Mechanical Data ◆Case: Transfer molded plastic. ◆Terminal: Lead solderable per MIL - STD - 202E method 208℃. ◆Polarity: Polarity symbols marked on case. ◆Mounting: Thru hole for #6 screw, 5 in,- lbs. Torque Max. ◆Weight: 0.27 ounce, 7.59 gram. Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25℃ ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load.
