TSR-3323 - Square Trimming Potentiometer

Suntan

Datasheet Details

Part number	TSR-3323
Manufacturer	Suntan
File Size	699.93 KB
Description	Square Trimming Potentiometer
Datasheet	TSR-3323 Datasheet

📁 Similar Datasheet

TSR0.5-24120 - Non-Isolated DC/DC Converter (TRACO POWER)
TSR0.5-24120SM - Non-Isolated DC/DC Converter (TRACO POWER)
TSR0.5-2415 - Non-Isolated DC/DC Converter (TRACO POWER)
TSR0.5-24150 - Non-Isolated DC/DC Converter (TRACO POWER)
TSR0.5-24150SM - Non-Isolated DC/DC Converter (TRACO POWER)
TSR0.5-2415SM - Non-Isolated DC/DC Converter (TRACO POWER)
TSR0.5-2418 - Non-Isolated DC/DC Converter (TRACO POWER)
TSR0.5-2418SM - Non-Isolated DC/DC Converter (TRACO POWER)
TSR0.5-2425 - Non-Isolated DC/DC Converter (TRACO POWER)
TSR0.5-2425SM - Non-Isolated DC/DC Converter (TRACO POWER)

Other Datasheets by Suntan

TSR-3329 - Circularity Trimming Potentiometer
TSR-3306 - Round Trimming Potentiometer
TSR-3309 - Round Trimming Potentiometer
TSR-3318 - Round Trimming Potentiometer
TSR-3361 - Square SMD Trimming Potentiometer
TSR-3362 - (TSR-3006 / TSR-3362) Square Trimming Potentiometer
TSR-3386 - Square Trimming Potentiometer
TSR-3006 - (TSR-3006 / TSR-3362) Square Trimming Potentiometer

Full PDF Text Transcription

Click to expand full text

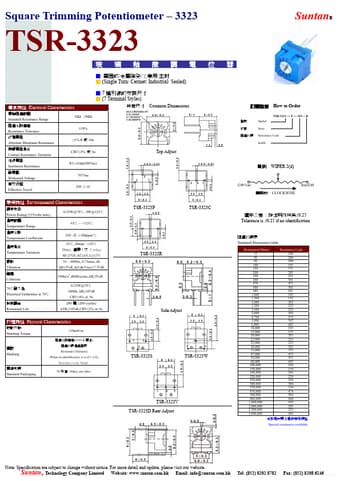

Square Trimming Potentiometer – 3323 Suntan ® TSR-3323 ▓ /// ▓ (Single Turn/ Cermet/ Industrial/ Sealed) ▓ 7 ▓ (7 Terminal Styles) Electrical Characteristics Standard Resistance Range Resistance Tolerance Absolute Minimum Resistance Contact Resistance Variation Insulation Resistance Withstand Voltage Effective Travel 10Ω - 2MΩ Model Style Resistance Code RoHS Common Dimensions How to Order TSR-3323 --- P --- 103 -- R ±10% ≤1% R 10n CRV≤3% 5n R1≥1GΩ(500Vac) 707Vac 250° ± 10° Top Adjust WIPER 2(d) CLOCKWISE Environmental Characteristics Power Rating (315volts max) Temperature Range Temperature Coefficient Temperature Variation Vibration Collision 70℃ Electrical Endurance at 70℃ Rotational Life 0.
