3KP11CA - 3000W Transient Voltage Suppressor

Product Overview

TAITRON

Part number	3KP11CA
Manufacturer	TAITRON
File Size	222.40 KB
Description	3000W Transient Voltage Suppressor
Datasheet	3KP11CA Datasheet
Note	This datasheet PDF includes multiple part numbers: 3KP11CA, 3KP5.0A. Please refer to the document for exact specifications by model.

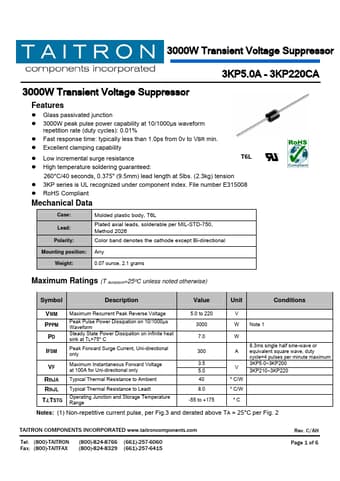

Additional preview pages of the 3KP11CA datasheet.

Value Unit Conditions VWM PPPM PD IFSM VF Maximum Recurrent Peak Reverse Voltage Peak Pulse Power Dissipati

z Glass passivated junction z 3000W peak pulse power capability at 10/1000μs waveform repetition rate (duty cycles): 0.01% z Fast response time: typically less than 1.0ps from 0v to VBR min. z Excellent clamping capability z Low incremental surge resistance T6L z High temperature soldering guaranteed: 260°C/40 seconds, 0.375" (9.5mm) lead length at 5lbs. (2.3kg) tension z 3KP series is UL recognized under component index. File number E315008 z RoHS Compliant Mechanical Data Case: Lead: P.
