LM7807 - 1A Standard Positive Voltage Regulator

This page provides the datasheet information for the LM7807, a member of the LM7847 1A Standard Positive Voltage Regulator family.

Product Overview

TAITRON

📥 Download Datasheet

Datasheet Details

Part number	LM7807
Manufacturer	TAITRON
File Size	506.35 KB
Description	1A Standard Positive Voltage Regulator
Datasheet	LM7807 Datasheet

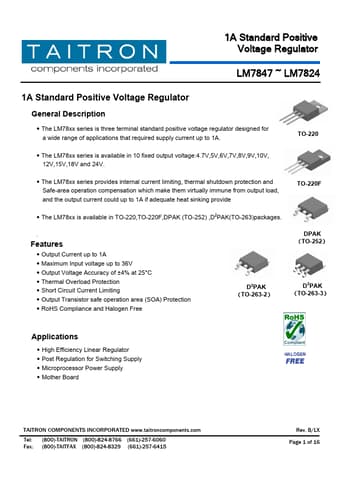

Additional preview pages of the LM7807 datasheet.

LM7807 Product details

Description

The LM78xx series is three terminal standard positive voltage regulator designed for a wide range of applications that required supply current up to 1A.

The LM78xx series is available in 10 fixed output voltage:4.7V,5V,6V,7V,8V,9V,10V, 12V,15V,18V and 24V.

The

Features

Output Current up to 1A.
Maximum Input voltage up to 36V.
Output Voltage Accuracy of ±4% at 25°C.
Thermal Overload Protection.
Short Circuit Current Limiting.
Output Transistor safe operation area (SOA) Protection.
RoHS Compliance and.
