MB3505 Datasheet - TAITRON

MB3505, 35A Single-Phase Bridge Rectifier

MB3505 MB351 MB352 MB354 MB356 MB358 MB3510 Unit Conditions VRRM VRMS Max. Repetitive Peak Reverse Voltage Max. RMS Voltage 50 100 200 400 600 800 1000 V 35 70 140 280 420 560 700 V VDC Max. DC blocking voltage 50 100 200 400 600 800 1000 V IO Average Rectified Output Current .

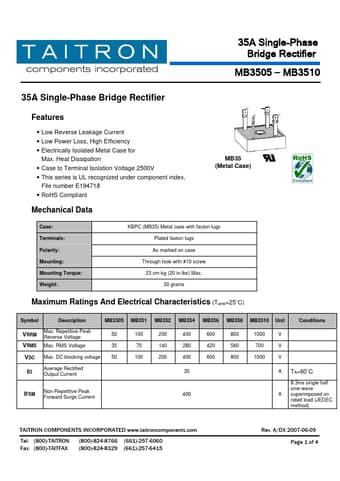

Datasheet Preview Page 1

MB3505-TAITRON.pdf

Preview of MB3505 PDF
MB3505 Datasheet Preview Page 2 MB3505 Datasheet Preview Page 3

Datasheet Details

Part number:

MB3505

Manufacturer:

TAITRON

File Size:

141.58 KB

Description:

35A Single-Phase Bridge Rectifier

MB3505 Features

* Low Reverse Leakage Current

* Low Power Loss, High Efficiency

* Electrically Isolated Metal Case for Max. Heat Dissipation

* Case to Terminal Isolation Voltage 2500V

* This series is UL recognized under component index, File number E194718

* RoHS Com
