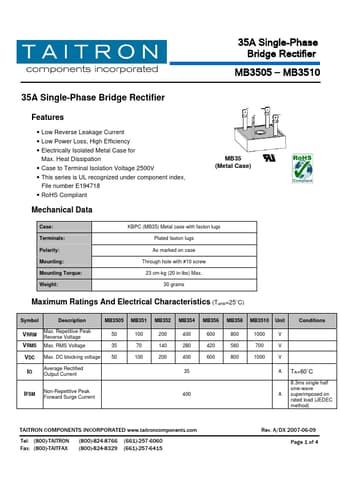

MB3510 Datasheet | Taitron Components

Features - Low Reverse Leakage Current - Low Power Loss, High Efficiency - Electrically Isolated Metal Case for Max. Heat Dissipation - Case to Terminal Isolation Voltage 2500V - This series is UL recognized under ponent index, File number E194718 - Ro HS pliant Mechanical Data MB35 (Metal Case) Case: Terminals: Polarity: Mounting: Mounting Torque: Weight: KBPC (MB35) Metal case with faston lugs Plated faston lugs As marked on case Through hole with #10 screw 23 cm-kg (20 in-lbs) Max. 30 grams Maximum Ratings And Electrical Characteristics (Tamb=25˚C) Symbol Description MB3505 MB351 MB352 MB354 MB356 MB358 MB3510 Unit Conditions VRRM VRMS Max. Repetitive Peak Reverse Voltage Max. RMS Voltage 35 70 140 280 420 560 700 V VDC Max. DC blocking voltage 50 Average Rectified Output Current 35 A TA=60˚C 8.3ms single half IFSM Non-Repetitive Peak Forward Surge Current 400 sine-wave A superimposed on rated load (JEDEC method) TAITRON PONENTS INCORPORATED .taitronponents. Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060 Fax: (800)-TAITFAX (800)-824-8329 (661)-257-6415 Rev. A/DX 2007-06-09 Page 1 of 4 35A Single-Phase Bridge Rectifier MB3505 - MB3510 Symbol Description...
