SMCJ11A, SMCJ50A Datasheet - TAITRON

SMCJ11A, SMCJ50A, Transient Voltage Suppressor

Stand-Off Voltage Peak Pulse Power Dissipation on 10/1000μs Waveform(1) (2) Peak Pulse Current on 10/1000μs Waveform(1) Peak Forward Surge Current 8.3ms Single Half Sine-wave, Uni-directional only (2) Maximum Instantaneous Forward Voltage for Unidirectional only Operating Junction and Storage Value.

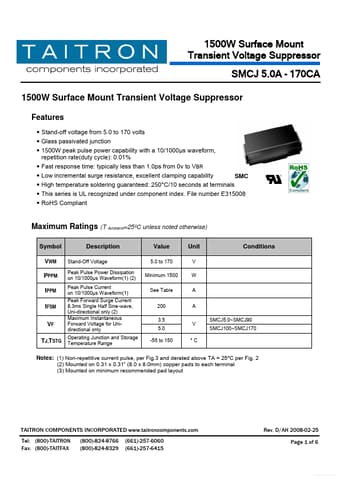

Datasheet Preview Page 1

SMCJ50A_TAITRON.pdf

This datasheet PDF includes multiple part numbers: SMCJ11A, SMCJ50A. Please refer to the document for exact specifications by model.
SMCJ11A Datasheet Preview Page 2 SMCJ11A Datasheet Preview Page 3

Datasheet Details

Part number:

SMCJ11A, SMCJ50A

Manufacturer:

TAITRON

File Size:

239.60 KB

Description:

Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: SMCJ11A, SMCJ50A.
Please refer to the document for exact specifications by model.

SMCJ11A Features

* Stand-off voltage from 5.0 to 170 volts

* Glass passivated junction

* 1500W peak pulse power capability with a 10/1000μs waveform, repetition rate(duty cycle): 0.01%

* Fast response time: typically less than 1.0ps from 0v to VBR

* Low incremental surge resis

SMCJ11A Distributors
