TIP100 - Darlington NPN Power Transistors

Description

TIP100 VCBO Collector-Base Voltage 60 VCEO Collector-Emitter Voltage 60 VEBO Emitter-Base Voltage IC Collector Current Continuous ICM Collector Current Peak IB Base Current Power Dissipation upto TC=25°C PD Power Dissipation upto TA=25°C Power Dissipation Derate above TA=25°C RθJA T

Features

Designed for general-purpose amplifier and low speed switching.

TAITRON

📥 Download Datasheet

Datasheet Details

Part number	TIP100
Manufacturer	TAITRON
File Size	236.29 KB
Description	Darlington NPN Power Transistors
Datasheet	TIP100 Datasheet

📁 Similar Datasheet

TIP100 - NPN Epitaxial Silicon Transistor (SemiHow)
TIP100 - DARLINGTON 8 AMPERE COMPLEMENTARY SILICON POWER TRANSISTORS (Motorola)
TIP100 - NPN SILICON POWER DARLINGTONS (Power Innovations Limited)
TIP100 - NPN Epitaxial Silicon Darlington Transistor (Fairchild Semiconductor)
TIP100 - NPN PLASTIC POWER TRANSISTORS (CDIL)
TIP100 - NPN Plastic Medium-Power Silicon Transistors (MCC)
TIP100 - Silicon NPN Transistor (ON Semiconductor)
TIP100 - Silicon NPN Darlington Power Transistors (Comset Semiconductors)
TIP100 - NPN Transistor (INCHANGE)
TIP100 - Silicon Power darlington Complementary transistors (Central Semiconductor)

Other Datasheets by TAITRON

TIP101 - Darlington NPN Power Transistors
TIP102 - Darlington NPN Power Transistors
TIP105 - Darlington PNP Power Transistors
TIP106 - Darlington PNP Power Transistors
TIP107 - Darlington PNP Power Transistors
TIP110 - Darlington Power Transistors
TIP111 - Darlington Power Transistors
TIP112 - Darlington Power Transistors

Full PDF Text Transcription

Click to expand full text

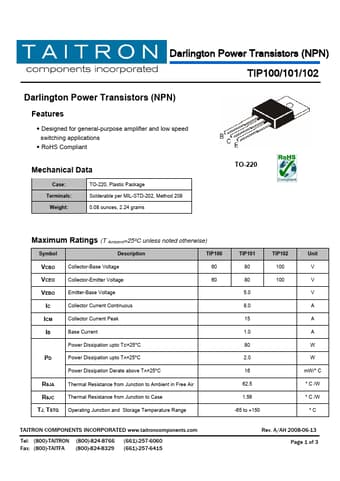

Darlington Power Transistors (NPN) TIP100/101/102 Darlington Power Transistors (NPN) Features • Designed for general-purpose amplifier and low speed switching applications • RoHS Compliant Mechanical Data Case: Terminals: Weight: TO-220, Plastic Package Solderable per MIL-STD-202, Method 208 0.08 ounces, 2.
