UF4004G - 1.0A Glass Passivated Ultra Fast Recovery Rectifier

Download the UF4004G datasheet PDF. This datasheet also covers the UF4001G variant, as both devices belong to the same 1.0a glass passivated ultra fast recovery rectifier family and are provided as variant models within a single manufacturer datasheet.

Description

Marking Code Max.

Repetitive Peak Reverse Voltage Max.

Max.

Features

  • Glass passivated chip junction.
  • Low forward voltage drop, high current capability.
  • Low leakage, high forward surge capability.
  • High temperature soldering guaranteed: 250°C, 0.375” (9.5mm), lead length for 10 seconds, 5 lbs. (2.3kg) tension.
  • RoHS Compliance Mechanical Data Case: JEDEC DO-41 molded plastic over passivated chip Epoxy: Plastic package has UL flammability classification 94V-0 Terminals: Axial leads, solderable per MIL-STD-750, Metho.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UF4001G-TAITRON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number UF4004G
Manufacturer TAITRON
File Size 170.77 KB
Description 1.0A Glass Passivated Ultra Fast Recovery Rectifier
Datasheet download datasheet UF4004G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UF4004G 1.0A GLASS PASSIVATED ULTRAFAST DIODE WON-TOP
UF4004G ULTRA FAST RECTIFIER MEI SEMI
UF4004G Glass Passivated Ultra Fast Rectifiers JGD
UF4004G GLASS PASSIVATED ULTRA FAST RECOVERY RECTIFIERS SEMTECH
UF4004G Glass Passivated Ultra Fast Recitifiers MIC

Other Datasheets by TAITRON

Part Number Description
UF4004 ULTRA FAST RECOVERY RECTIFIER
UF4001 ULTRA FAST RECOVERY RECTIFIER
UF4001G 1.0A Glass Passivated Ultra Fast Recovery Rectifier
UF4002 ULTRA FAST RECOVERY RECTIFIER
UF4002G 1.0A Glass Passivated Ultra Fast Recovery Rectifier

Full PDF Text Transcription

Click to expand full text

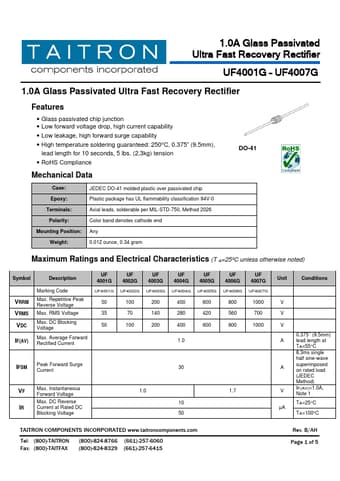

1.0A Glass Passivated Ultra Fast Recovery Rectifier UF4001G – UF4007G 1.0A Glass Passivated Ultra Fast Recovery Rectifier Features • Glass passivated chip junction • Low forward voltage drop, high current capability • Low leakage, high forward surge capability • High temperature soldering guaranteed: 250°C, 0.375” (9.5mm), lead length for 10 seconds, 5 lbs. (2.3kg) tension • RoHS Compliance Mechanical Data Case: JEDEC DO-41 molded plastic over passivated chip Epoxy: Plastic package has UL flammability classification 94V-0 Terminals: Axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.012 ounce, 0.
