Z1SMA36 Datasheet - TAITRON

1.0W Surface Mount Zener Diodes

Z1SMA36 Features

* Glass Passivated chip junction

* Low Zener Impedance

* Excellent Clamping Capability

* High temperature soldering guaranteed: 260˚C/10 seconds

* RoHS Compliance SMA Mechanical Data Case: Epoxy: Terminals: Polarity: Weight: SMA (DO-214AC) molded plastic Plas

Z1SMA36 General Description

Power dissipation Power dissipation Operating Junction and Storage Temperature Range Max. Forward Voltage drop Typical Thermal Resistance PCB epoxy-glass path 1.5mm Value 1.0 3.0 -65 to 175 1.0 25 150 125 100 Unit W W °C V °C / W °C / W °C / W °C / W Ta=25 °C Conditions Ptot Ptot Ta=25 °C, RthJ.

Z1SMA36 Datasheet (363.68 KB)

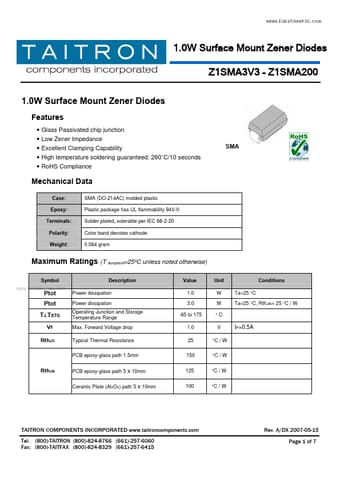

Z1SMA36 Datasheet Preview — Preview of Z1SMA36 PDF

Datasheet Details

Part number:

Z1SMA36

Manufacturer:

TAITRON

File Size:

363.68 KB

Description:

1.0w surface mount zener diodes.
